1 Sales CHY-U thickness gauge,Manufacturer

CHY-U thickness gauge for film

Product ID:HZBZzyhd010

Price: Please inquire PDF Format
Supply Ability:60 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCHY-U
    Brand NameSANQUANZHONGSHI
    Payment TermsT/T, paypal

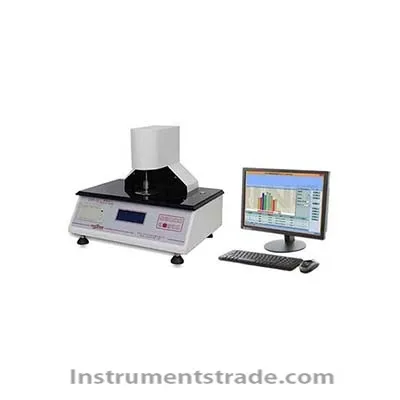

    CHY-U thickness gauge

    Introduction:
    The thickness gauge CHY-U is suitable for the accurate measurement of the thickness of hard and soft materials such as film, battery separator, solar cell wafer, paper, tape. It is a fully automatic thickness gauge with ultra-high test accuracy. The thickness gauge is widely used in quality inspection institutions, film manufacturers, photovoltaic plants and other units.
    The thickness gauge adopts the contact test principle to intercept a certain size sample, and the thickness gauge measurement head automatically falls on the sample, and the thickness value of the sample is tested by a fixed pressure and a fixed contact area.
    Features:
    1. Microcomputer control, large LCD display
    2. Import high-precision sensors to ensure test accuracy
    3. Strictly follow the standard design of contact area and measurement pressure, while supporting various non-standard customization
    4. The measuring head is automatically raised and lowered to avoid systematic errors caused by human factors.
    5. Manual and automatic dual measurement mode, more convenient for customers to choose
    6. Equipped with micro printer, real-time data display, automatic statistics, printing, convenient and quick access to test results
    7. Print the maximum, minimum, average and each measurement result, which is convenient for users to analyze the data.
    8. The instrument automatically saves up to 100 sets of test results, ready to view and print
    9. Standard gauge block calibration, convenient for users to quickly calibrate equipment
    10. The thickness gauge is equipped with a dedicated autosampler, which can realize automatic multi-point measurement with one button, with minimal human error.
    11.Professional software provides graphical statistical analysis of test results, accurately and intuitively showing test results to users
    12. Equipped with standard RS232 interface to facilitate external connection and data transmission between system and computer
    Technical Parameters:
    Measuring range: 0-2mm (other ranges can be customized)
    Resolution : 0.1um
    Measuring speed: 10 times / min (adjustable)
    Measuring pressure: 17.5 ± 1kPa (film); 100 ± 1kPa (paper)
    Contact area: 50mm2 (film), 200mm2 (paper) Note: Choose one of film and paper
    Injection step: 0 to 1300 mm (adjustable)
    Injection speed: 0 to 120 mm/s (adjustable)
    Dimensions: 450mm × 340mm × 390mm
    Weight: 23kg
    Environmental requirements
    Ambient temperature: 15°C-50°C
    Test environment: no vibration, no electromagnetic interference
    Relative humidity: up to 80%, no condensation
    Working power supply: 220V, 50Hz

  • Introduction:
    The thickness gauge CHY-U is suitable for the accurate measurement of the thickness of hard and soft materials such as film, battery separator, solar cell wafer, paper, tape. It is a fully automatic thickness gauge with ultra-high test accuracy. The thickness gauge is widely used in quality inspection institutions, film manufacturers, photovoltaic plants and other units.
    The thickness gauge adopts the contact test principle to intercept a certain size sample, and the thickness gauge measurement head automatically falls on the sample, and the thickness value of the sample is tested by a fixed pressure and a fixed contact area.
