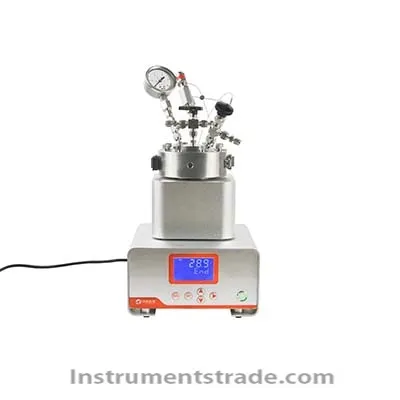

CEL-MPR micro reactor Introduction: In order to adapt to the development of the field of material science research, Our company has developed a number of micro high-temperature and high-pressure reactors, which can achieve reactions such as material catalysis, organic synthesis, material synthesis, polymerization, and degradation under high pressure (<10MPa) and high temperature (<300 ℃). The micro reactor is suitable for the reaction of a small amount of samples, and is an ideal reaction device for testing expensive or low yield raw material samples. It can be configured with GPPCN/GPPCL to inject quantitative gas, PPS series liquid feed pump to inject quantitative liquid, and CEL-CPS constant pressure sampler to achieve depressurization of sample gas, achieving online automatic analysis and testing of GC. characteristic: 1. Independent research and development of temperature control system, innovative use of dual temperature control inside and outside the kettle to eliminate temperature overshoot; Internal magnetic stirring: optional magnetic suspension stirring without exposed rotating parts; The interior of the reactor body can be sprayed with polytetrafluoroethylene to avoid pollution; 4. Both gas solid liquid reaction and gas solid reaction can be realized inside the kettle body; 5. Realize material catalysis under high pressure (<10MPa) and high temperature (<300 ℃); 6. Double line flange sealing technology solves the problem of traditional seal leakage and realizes rapid disassembly and assembly; 7. Equipped with American anlok high-quality needle valve, three-way ball valve, and pressure gauge, it achieves flexible control of the pressure of the kettle body; 8. Equipped with a safety unloading valve, it adds another layer of safety to the experimental safety environment. Technical parameters: Volume: 100ml, 250ml, 25ml, 50ml, 500ml Heating temperature:<300 ℃ (temperature control accuracy 0.1 ℃), Temperature control method: dual point temperature control inside and outside the kettle, dual PID constant temperature program control Working pressure: 10MPa, (pressure resistance can be customized to 20MPa, 30MPa) Kettle material: 316L corrosion-resistant stainless steel (inner wall can be coated with PTFE at any time, Hastelloy can be customized), standard lining (PTFE or quartz) Kettle cover: standard needle valve, three-way ball valve, unloading valve, dual thermocouple, pressure gauge, and standby interface. The valve is American anlok Connection method: double crescent shaped snap ring and flange connection structure Sealing: High temperature resistant graphite composite material sealing, double line sealing structure Mixing method: internal magnetic stirring (optional magnetic suspension stirring), 100-2000 rpm/min Gas-solid reaction: (optional) GS100 dedicated reflux gas-solid reaction accessories, stainless steel sand plate Control display: LCD screen setting display: control temperature, kettle temperature, furnace temperature, magnetic stirring speed Power configuration: 200-240V/AC, 50-60Hz, 1000W
Introduction: In order to adapt to the development of the field of material science research, Our company has developed a number of micro high-temperature and high-pressure reactors, which can achieve reactions such as material catalysis, organic synthesis, material synthesis, polymerization, and degradation under high pressure (<10MPa) and high temperature (<300 ℃). The micro reactor is suitable for the reaction of a small amount of samples, and is an ideal reaction device for testing expensive or low yield raw material samples. It can be configured with GPPCN/GPPCL to inject quantitative gas, PPS series liquid feed pump to inject quantitative liquid, and CEL-CPS constant pressure sampler to achieve depressurization of sample gas, achieving online automatic analysis and testing of GC.
