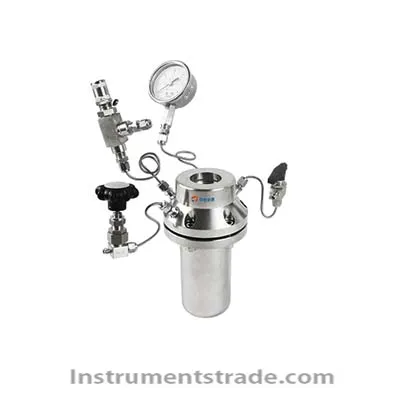

CEL-HPR250 photochemical reaction kettle Introduction: In order to adapt to the development of photochemical field, our company has developed several conventional photochemical autoclaves, which can realize photochemical catalysis, synthesis, degradation and other reactions under high pressure. The reaction model and design model have applied for national patent protection. CEL-HPR250 photochemical reaction kettle, 250ml photochemical reaction kettle, with a light window of 40mm, and the light source can be connected by the upper and lower irradiation flange; Four 3mm interfaces are reserved as standard to connect pressure gauge, safety valve, three-way valve, needle valve, thermometer, etc; All joints are connected on the cover of the reactor, which is easy to separate the pipeline from the reactor body, and it is easier to operate the reaction solution, and also easy to clean the reactor body, sample replacement, lined with polytetrafluoroethylene material, which can be replaced at will; The heating and temperature control of water bath, oil bath and heating sleeve can be realized externally. characteristic: 1. The limit pressure is 10Mpa, and 3.5MPa and 6.5Mpa safety valves can be selected; 2. The design adopts a threaded sealing structure, which is easy to disassemble and has a light aperture of 40mm; 3. 4-8 standard high-voltage interfaces can be reserved as air inlet and real-time online detection (4 standard interfaces can be reserved as standard); 4. It can add the required reaction gas at fixed time and quantity; 5. It can realize online continuous gas sampling in the reaction; 6. The corresponding high-voltage system can be customized according to the experimental requirements; 7. Ultra-hard synthetic quartz is used for the light hole, which ensures the safety of the product and achieves 180-1100nm full spectrum transmission; 8. The outside of the reactor can be heated or cooled according to the experimental requirements to keep the temperature constant.
Introduction: In order to adapt to the development of photochemical field, our company has developed several conventional photochemical autoclaves, which can realize photochemical catalysis, synthesis, degradation and other reactions under high pressure. The reaction model and design model have applied for national patent protection. CEL-HPR250 photochemical reaction kettle, 250ml photochemical reaction kettle, with a light window of 40mm, and the light source can be connected by the upper and lower irradiation flange; Four 3mm interfaces are reserved as standard to connect pressure gauge, safety valve, three-way valve, needle valve, thermometer, etc; All joints are connected on the cover of the reactor, which is easy to separate the pipeline from the reactor body, and it is easier to operate the reaction solution, and also easy to clean the reactor body, sample replacement, lined with polytetrafluoroethylene material, which can be replaced at will; The heating and temperature control of water bath, oil bath and heating sleeve can be realized externally.
