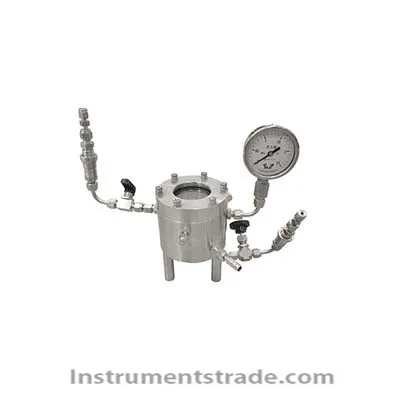

CEL-GPRT100 tripod photocatalytic reactor Introduction: CEL-GPRT100 tripod photocatalysis reactor is mainly used for gas-solid and gas-liquid photocatalysis reactions. It can be applied to heterogeneous and homogeneous systems such as CO2 reduction, VOC degradation, gas pollutant degradation, photocatalysis nitrogen fixation, etc. It is applicable to various catalyst systems. The catalyst can be in the form of powder, liquid, membrane material, sheet or block. The tripod photocatalytic reactor is mainly used with 300W, 500W photocatalytic xenon lamp light source and 100W high-power LED light source. It can be used with CEL-GPPC series gas phase catalytic system and GC7920 reverse control gas chromatography to build a gas phase photocatalytic reaction test and analysis system. In the tripod photocatalysis reaction kettle, the reaction gas can pass through the catalyst from top to bottom or from bottom to top, and can also pass through the catalyst horizontally. The kettle body is made of corrosion-resistant stainless steel integrally, with flange sealing, equipped with 3 standard connectors for gas inlet and outlet, the integrated water jacket interlayer is used for temperature control, and the standard quick connector can be quickly connected to the reaction pipeline at any time. The diameter of quartz window is 52mm, the outer diameter of reactor is 106mm, and the height is 78mm. characteristic: 1. The flange sealing structure is adopted, and the disassembly is simple. 2. The inlet and outlet pipes are connected with the external gas circuit by quick-fitting joints, which makes installation and disassembly more convenient on the premise of ensuring sealing. 3. It can add the required reaction gas at fixed time and quantity. 4. It can realize online continuous gas sampling in the reaction, and cooperate with automatic sampler to realize unmanned and automatic analysis. 5. Ultra-hard synthetic quartz is used for the light hole, which ensures the safety of the product and achieves the full-spectrum transmittance of more than 95% at 200-2500nm. 6. The reactor is equipped with a standard water interface, which can be heated or cooled according to the experimental requirements to keep its temperature constant. 7. The connection between the reaction kettle and the outside is ferrule connection, which is well sealed and easy to install. Technical parameters: CEL-GPRT100: tripod photocatalytic reactor Pressure resistance: 2MPa Seal: flange O-ring seal Light window: quartz glass, diameter 52mm Kettle outer diameter * height: 106mm * 78mm Kettle body material: integrated molding processing, 316L stainless steel Kettle interlayer temperature control: water bath or oil bath circulation constant temperature, 10mm joint Valve: American anlok needle valve, ball valve, joint, pipe, 3mm pipe joint Temperature: standard temperature display header, real-time monitoring of reaction temperature Built-in: 2 gas-solid reaction supports; 2 gas-liquid reaction accessories
Introduction: CEL-GPRT100 tripod photocatalysis reactor is mainly used for gas-solid and gas-liquid photocatalysis reactions. It can be applied to heterogeneous and homogeneous systems such as CO2 reduction, VOC degradation, gas pollutant degradation, photocatalysis nitrogen fixation, etc. It is applicable to various catalyst systems. The catalyst can be in the form of powder, liquid, membrane material, sheet or block. The tripod photocatalytic reactor is mainly used with 300W, 500W photocatalytic xenon lamp light source and 100W high-power LED light source. It can be used with CEL-GPPC series gas phase catalytic system and GC7920 reverse control gas chromatography to build a gas phase photocatalytic reaction test and analysis system. In the tripod photocatalysis reaction kettle, the reaction gas can pass through the catalyst from top to bottom or from bottom to top, and can also pass through the catalyst horizontally. The kettle body is made of corrosion-resistant stainless steel integrally, with flange sealing, equipped with 3 standard connectors for gas inlet and outlet, the integrated water jacket interlayer is used for temperature control, and the standard quick connector can be quickly connected to the reaction pipeline at any time. The diameter of quartz window is 52mm, the outer diameter of reactor is 106mm, and the height is 78mm.
