Brief introduction:

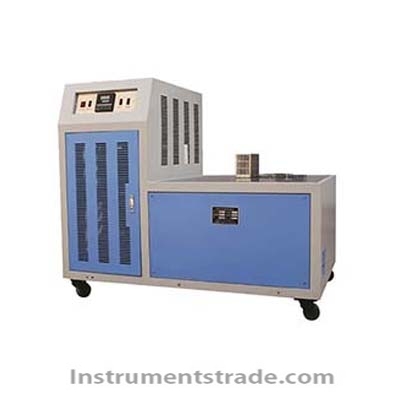

CDW - 100 type low impact test thermometer is the company according to GB229-2007 "metal charpy notched impact test method" for the cryogenic device requirements and the latest research and development of the compressor refrigeration equipment. This equipment adopts three-stage compressor refrigeration technology, the thermal equilibrium principle and manner of circulating stirring, to achieve automatic uniform cooling of style, constant temperature. It can fully meet the national standard GB - 229-2007, EN10045-2, electronics - 02 a prescribed temperature control indicators. This equipment is simple and convenient operation, high efficiency is the most ideal material of low temperature impact test specimen cooling, heat preservation equipment. At the same time can also be used for other low temperature inspection and test work. Technical parameters:
Temperature control range: at room temperature to 100 ℃ (room temperature 25 ℃ or less)
Constant temperature precision: plus or minus 0.5 ℃
Cooling speed: room temperature 0 ℃ ~ 2.0 ℃ / min
0 ℃ to 40 ℃ to 1.5 ℃ / min
- 40 ℃ ~ 60 ℃ is about 1.2 ℃ / min
60 ℃ ~ 100 ℃ is about 0.8 ℃ / min
Largest dimension: 1300 * 800 * 800 mm (length x width x height)
Effective working space: 275 * 160 * 160 mm (length x width x height)
Can pack sample quantity: > 60 (impact sample size: 10 * 10 * 55 mm)
Display timer: 1 min ~ 9999 min, the resolution of 1 min
Cooling medium: anhydrous ethanol or other non-freezing fluid
Mixing motor: 23 w
Working power supply: 220 v to 240 v, 50 hz, 3.5 kW
