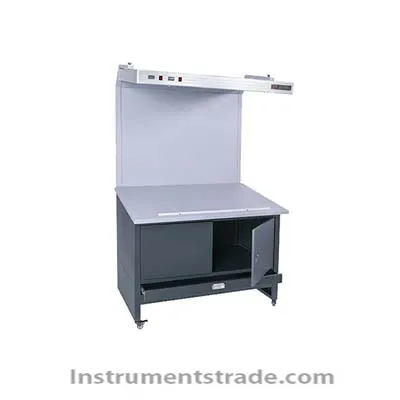

CC120-E standard light source sample stand Introduction: The standard light source printing look-out table is widely used in the printing field to accurately compare the color deviation of printed matter. Because different light sources have different radiant energies, different colors appear when they are illuminated onto the item. Color management in printing production, although the quality inspector has carefully compared the color of the goods, but because the ambient light source is not standard or inconsistent with the light source used by the merchants, the colors seen under different light are different, and the color difference of the goods is not determined. accurate. When the merchants inspect the goods, they will complain and even return the goods because the color difference is out of the standard range, which seriously affects the company's goodwill. The most useful way to effectively solve the above problems is to verify the color of the goods under the same light source and controllable conditions. For example, artificial daylight D65 is often used as a standard light source for assessing the color of goods in international general standards. Especially during night shifts, it is especially important to use a standard light source to check the color deviation of the product. The printing sample platform also provides D65, D50, TL84, CWF and other light source options, and has the function of testing the metachromatic effect. Operating 1. Plug the power cord and the docking station into the power socket of the sample station. Look at the power socket of the sample station at the top of the light box and the other end of the power supply. (Note that the power supply must be connected to the input power source indicated by the sample station. Match). 2. Select a light source switch to press, the corresponding light source tube lights up, and the timer of the sample station starts to count. To switch the light source, you can turn off the front light source and then press the light source switch that needs to be lit. To turn on two or more light sources at the same time, simply press two or more light source switches at the same time. 3. When the item to be inspected is placed in the middle of the table, when the color of two or more items needs to be compared, it should be placed side by side on the sample table and compared as much as possible in the middle position. When working, the countertop should not be placed with anything unrelated to work, so as not to affect the color change. 4. After the test is completed, turn off all the light source lamp switches that have been turned on. When the off-hours are not in use, turn off the power. When not in use for a long time, unplug the power cord. 5. Replace the new lamp tube. There are two white cap screws on the front of the light-transmissive glass. You can unscrew the two screws and open the light-transmissive glass. When opening the light-transmissive glass, gently open it and gently lower it. Remove the lamp that needs to be replaced and install the new lamp. Pay attention to different light sources, different positions of the lamp, and you can't make mistakes.
Introduction: The standard light source printing look-out table is widely used in the printing field to accurately compare the color deviation of printed matter. Because different light sources have different radiant energies, different colors appear when they are illuminated onto the item. Color management in printing production, although the quality inspector has carefully compared the color of the goods, but because the ambient light source is not standard or inconsistent with the light source used by the merchants, the colors seen under different light are different, and the color difference of the goods is not determined. accurate. When the merchants inspect the goods, they will complain and even return the goods because the color difference is out of the standard range, which seriously affects the company's goodwill. The most useful way to effectively solve the above problems is to verify the color of the goods under the same light source and controllable conditions. For example, artificial daylight D65 is often used as a standard light source for assessing the color of goods in international general standards. Especially during night shifts, it is especially important to use a standard light source to check the color deviation of the product. The printing sample platform also provides D65, D50, TL84, CWF and other light source options, and has the function of testing the metachromatic effect.
