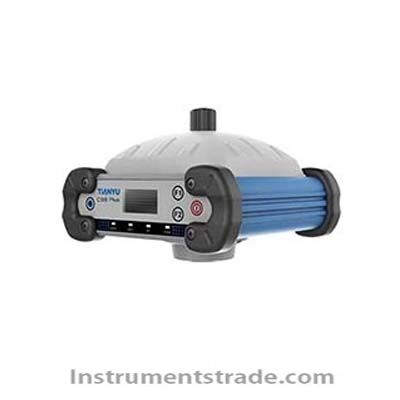

Features: 1. Faster and stronger New LINUX platform Faster startup, more real-time response, and more stable system. The new generation of embedded Linux operating system platform improves RTK performance and improves work efficiency. The Linux system platform runs efficiently, and its unique kernel processing mechanism can respond to multiple commands at the same time, enabling faster startup and more real-time response. The system has higher stability and is suitable for longer-term uninterrupted operation. 2. More timely response The Linux platform improves hardware response capability and can carry higher-intensity data output frequencies, realizing up to 50Hz positioning information output speed. Unique multi-threaded kernel processing mechanism for higher data write efficiency and static sampling frequency up to 50Hz. 3. High performance built-in radio The built-in radio station with integrated transmission and reception fully supports the mainstream radio communication protocol, realizes interconnection with imported products, and can use the radio relay mode. Station relay mode: The mobile station forwards the received differential signals of the station to other mobile stations through the built-in radio station, greatly extending the range of the station. 4. Dual mode long distance Bluetooth The industry's first Bluetooth communication technology, equipped with 4.0 standard dual-mode long-distance Bluetooth, can connect with mainstream mobile phones, tablets and other digital products, and is compatible with 2.1 standards, connecting handsbook. Efficient and stable data transmission technology, Bluetooth distance is farther, giving users a more comfortable working experience. 5. Intelligent temperature control and energy saving technology A plurality of temperature sensors are distributed inside the receiver to monitor the temperature status of each module in the real-time. The compensation and frequency modulation are performed in real time according to the temperature state, and the power consumption is optimized to ensure that the host can achieve the best working condition at high temperature, and the battery life is increased by 20%. . 6. Smart dialing The mainstream smartphone heartbeat dialing mode is optimized for the mobile cellular network data link, and the network performance has been greatly improved. Based on the Linux platform, PPP dialing technology can automatically perform heartbeat interaction with the base station in real time to ensure continuous online measurement. At the same time, the connection status and error information of PPP dialing will be prompted by the handbook control software. 7. Intelligent storage technology Built-in 8G solid-state storage, and support for external U disk storage, STH, Rinex support multiple formats, sampling frequency up to 50Hz, support automatic cyclic storage, disk full automatic deletion. Support one-button smart copy, external U disk outdoor direct copy data 8. Custom development interface Support user secondary development, provide a rich data interface, and quickly customize the function according to user needs. 9. New network architecture Mobile Network: A new network program architecture that is compatible with existing CORS systems. Equipped with high-speed network communication module, more configuration is free to choose. 10. Visual web page management Web UI management background: Built-in Web UI network user management background, support WiFi and USB mode access to the receiver built-in web management page, real-time monitoring of host status, free configuration of the host. 11.WIFI data link The first use of WiFi as a data link significantly improves the actual measurement results; at the same time, it has an AP hotspot function, and any intelligent terminal can be connected to the receiver to control it after being turned on. Seamless access to the Internet using 802.11b/g international standard WIFI. 12. Cloud Service Platform Powerful cloud service management platform, remote management, configuration equipment, progress review, job management, etc. Data services: data backup, real-time sharing. Technical Parameters: Signal Tracking: 220 channels BDS B1, B2, B3 GPS L1C/A, L1C, L2C, L2E, L5 GLONASS L1C/A, L1P, L2C/A, L2P, L3 SBAS L1C/A, L5 (for SBAS satellites supporting L5) Galileo GIOVE-A and GIOVE-B, E1, E5A, E5B QZSS, WAAS, MSAS, EGNOS, GAGAN (Star Station Differential) GNSS features: Positioning output frequency 1Hz ~ 50Hz Initial initialization time is less than 10 seconds Initialization reliability >99.99% Full constellation reception technology capable of supporting GNSS constellation signals from all current and planned Highly reliable carrier tracking technology, greatly improving carrier accuracy and providing users with high quality raw observation data Intelligent dynamic sensitivity positioning technology adapts to various environmental transformations and adapts to more harsh and distant positioning environments High-precision positioning processing engine Code differential GNSS positioning: Level: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS SBAS differential positioning accuracy: typically <5m 3DRMS Static GNSS measurement: ±(2.5 mm + 1mm/km×d) (d is the distance between measured points, km) Real-time dynamic measurement: ±(8 mm + 1mm/km×d) (d is the distance between measured points, km) Operating System: Linux Web interaction: Support WIFI and USB mode access to the receiver built-in web management page, monitor host status, freely configure host, etc. Secondary development: Provide secondary development package, open OpenSIC observation data format and interactive interface definition for secondary development Data cloud service: Web version of cloud service management platform, support remote registration, data interaction and other services such as online registration Size: 165mm × 168mm × 122mm (length × width × height) Weight: 1.85kg (with battery) Temperature: Operating temperature: –45 °C to +60 °C Storage temperature: –55 °C to +85 °C Humidity: 100% condensation resistant Protection level: Waterproof: 1m soak, IP67 Dustproof: completely prevent dust from entering, IP67 Shockproof: anti-3m drop Power supply: 9-25V wide voltage DC design with overvoltage protection Battery: 7.2V built-in dual battery pack 8800mAH Radio Modem: Built-in high-performance transceiver station, typical working distance 8km, working frequency 450-470MHz, switchable network relay, radio relay mode External transmitting station 5W/25W, working frequency 450-470MHz Cellular Mobile: Intelligent PPP dialing technology based on Linux platform, automatic real-time dialing, continuous online during work Host built-in network antenna, equipped with 3G high-speed network communication module Compatible with various CORS system access Bluetooth: BLEBluetooth 4.0 Bluetooth standard, support Android, IOS system phone connection Bluetooth 2.1 + EDR standard External communication: Optional external GPRS/CDMA dual-mode communication module, free to switch, adapt to various working environments; Support for external wireless network card Standard: 802.11b/g standard WIFI hotspot: With WIFI hotspot function, any intelligent terminal can access the receiver, and richly customize the receiver function; Data collectors such as industrial handbooks and smart terminals can transmit data with the receiver via WIFI. WIFI data link: The receiver can access WIFI, and differential data broadcast or receive through WIFI Data storage: 8G built-in solid state memory Automatic loop storage (automatically delete the oldest data when there is not enough storage space) Support external USB memory for data storage Rich sampling interval, up to 50Hz raw observation data acquisition Data transmission: One-button smart copy directly exports host static data through an external USB memory Plug and play USB transfer data mode FTP download, HTTP download Electronic bubble: Built-in sensor, handbook software can display electronic bubbles, check the alignment of the pole in real time Temperature sensor: Built-in multiple temperature sensors, intelligent frequency conversion temperature control technology, real-time monitoring and adjustment of host temperature
