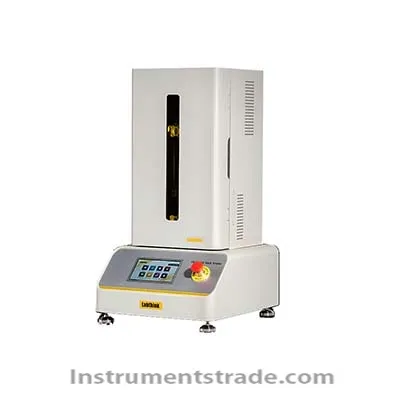

C632M thermal adhesive tensile tester Introduction: C632M thermal adhesion tensile tester is specialized in testing the thermal adhesion and sealing performance of packaging materials such as plastic films and composite films. characteristic: 1. 7-inch industrial touch screen for more convenient operation 2. Sensor static design to reduce force fluctuations 3. AC servo system for smoother high-speed operation 4. Global procurement of core components with low failure rate and long service life 5. The device has a self detection function, which can provide over temperature and over limit alarms 6. Supports multi unit display of MPa and PSI 7. Equipped with automatic data storage and power failure automatic memory functions to prevent data loss 8. Multilevel user permission management, password login 9. Micro printer and USB universal data interface for convenient data output and transfer (optional) 10. DataShieldTM data shield system, convenient for centralized data management and integration with information systems (optional) Technical parameters: Number of heads: 1 set (double heating) Head surface: metal Head size: 100mm x 10mm Fixture width: 35 mm Sample width: 15 mm or 25 mm or 25.4 mm Clamp spacing: 350 mm Gas specification: Dry air (supplied with gas source) Air source pressure: 101.5PSI/0.7 MPa Interface size: Φ 6mm polyurethane pipe External dimensions: 32 "H x 17" W x 19 "D (81cm × 43cm × 48cm) Power supply: 120VAC ± 10% 60Hz/220VAC ± 10% 50Hz (either option) Net weight: 133Lbs (60kg)
Introduction: C632M thermal adhesion tensile tester is specialized in testing the thermal adhesion and sealing performance of packaging materials such as plastic films and composite films.
