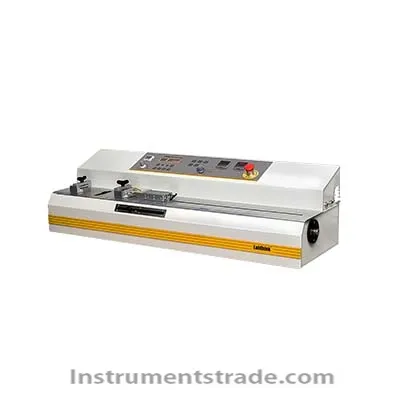

C632B thermal adhesive tensile tester Introduction: The C632B thermal adhesion tensile tester is specialized in testing the thermal adhesion and sealing performance of packaging materials such as plastic films and composite films. It is also suitable for testing soft materials such as adhesives, adhesive tapes, stickers, adhesive composites, composite films, plastic films, paper, etc. for peeling and breaking. Produced by the drafting unit of the national standard (GB/T 34445-2017), it strictly meets the standard requirements. characteristic: 1. Four major test modes: hot adhesion, hot sealing, peeling, and tensile, with multiple uses for one machine 2. Digital P.I.D temperature control technology can quickly reach the set temperature, effectively avoiding temperature fluctuations 3. Four range force values and six test speeds to meet different testing needs 4. Meet the test speed requirements of the thermal adhesion measurement standard GB/T 34445-2017 5. The hot stick test adopts fully automatic sampling, simplifying operation, reducing errors, and ensuring data consistency 6. Pneumatic clamping system for easier sample clamping (optional) 7. Design automatic reset, fault prompt, overload protection, travel protection, etc. to ensure safe operation 8. Two test start modes, manual and foot, can be flexibly selected as needed 9. Anti scald safety design to enhance operational safety 10. The system accessories are all imported components from world-renowned brands, with stable and reliable performance 11. Computers and instruments can be controlled in both directions 12. The instrument can work independently from the computer, making it convenient for quick operation and data viewing 13. Convenient data transmission interface for exporting test data Technical parameters: Sensor specification: 30 N (standard) 50 N 100 N 200 N (optional) Force accuracy: Indicating value ± 1% (10% -100% of sensor specifications) ± 0.1% FS (0% -10% of sensor specifications) Force resolution: 0.01 N Test speed: 150 200 300 500 and hot tap 1500mm/min, 2000mm/min Sample width: 15 mm or 25 mm or 25.4 mm Stroke: 500 mm Heat sealing temperature: room temperature~250 ℃ Temperature fluctuation: ± 0.2 ℃ Temperature accuracy: ± 0.5 ℃ (single point calibration) Heat sealing time: 0.1~999.9 seconds Hot stick time: 0.1~999.9 seconds Heat sealing pressure: 0.05 MPa~0.7 MPa Hot cover: 100 mm x 5 mm Heat sealing head heating: double heating (single sided silicone) Air source: air (provided by the user) Air source pressure: 0.7 MPa (101.5 psi) Air source interface: Φ 4 mm polyurethane pipe Boundary dimension: 1120 mm (L) × 380 mm (W) × 330 mm (H) Power supply: 220VAC ± 10% 50Hz/120VAC ± 10% 60Hz Net weight: 45 kg
Introduction: The C632B thermal adhesion tensile tester is specialized in testing the thermal adhesion and sealing performance of packaging materials such as plastic films and composite films. It is also suitable for testing soft materials such as adhesives, adhesive tapes, stickers, adhesive composites, composite films, plastic films, paper, etc. for peeling and breaking. Produced by the drafting unit of the national standard (GB/T 34445-2017), it strictly meets the standard requirements.
