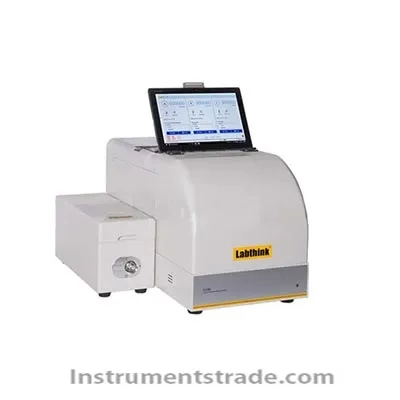

C230M (2019) Oxygen Transmission Rate Test System Introduction: This product is based on Coulomb Oxygen Analysis Sensor and isobaric test principle. It is designed and manufactured according to ISO 15105-2 and ASTM D3985 standards. It provides high-precision and high-efficiency oxygen transmission rate test for high, medium and low gas barrier materials. It is suitable for oxygen transmission performance testing of films, sheets, packages and related materials in the fields of food, medicine, medical equipment, household chemistry, photovoltaic electronics, etc. Features: 1. A new generation of advanced test integration blocks A patented three-cavity integrated test block structure designed for advanced thermodynamics and fluid dynamics analysis. Supports simultaneous testing of three identical or different samples. 2. Automatic temperature, humidity and flow control The internal temperature and humidity of the device are automatically adjusted. The test chamber is equipped with a temperature and humidity sensor to monitor the temperature and humidity, and the control process is more precise. Automatically adjust the gas flow to ensure constant flow in the test process and reduce test errors. 3. Easy to use and efficient system function Equipped with a high-performance processor and Windows 10 operating system, a variety of software and equipment. Automated test mode for quick and accurate results without manual adjustments. The professional test mode provides flexible and rich instrument control functions to meet individual scientific research needs. Unique DataShieldTM data shield system, centralized user data management requirements, support for multiple data formats export; use reliable security algorithms to prevent data leakage; support universal wired and wireless LAN, optional private wireless network, support for access to third-party software. 4. Advanced user service awareness Adhering to the user-centric service concept, Labthink has created a mature product customization system process that provides flexible and personalized customization services. Technical Parameters: Test range: cm3/(m2•day) (standard) 0.01 ~ 5000 Cc/(100in2•day) 0.0007 ~ 322 Cm3/(pkg•day) (package) 0.00005 ~ 25 Resolution: cm3/(m2•day) 0.001 Repeatability: cm3/(m2•day) 0.01 or 2%, whichever is greater Test temperature: °C 10～55±0.2 Test humidity: RH 0%, 5% to 90% ± 1%, 100% Additional features: Package testing (up to 3L) Optional DataShieldTM Data Shield Note 2 Optional GMP computer system requirements Optional CFR21 Part11 optional Table 2: Technical Specifications Test cavity: 3 Sample size: 108mm × 108mm Sample thickness: ≤3mm Standard test area: 50cm2 Carrier gas specification: 99.999% high purity nitrogen (air source user-supplied) Air source pressure: ≥0.28MPa/40.6psi Interface size: 1/8 inch metal tube
Introduction: This product is based on Coulomb Oxygen Analysis Sensor and isobaric test principle. It is designed and manufactured according to ISO 15105-2 and ASTM D3985 standards. It provides high-precision and high-efficiency oxygen transmission rate test for high, medium and low gas barrier materials. It is suitable for oxygen transmission performance testing of films, sheets, packages and related materials in the fields of food, medicine, medical equipment, household chemistry, photovoltaic electronics, etc.
