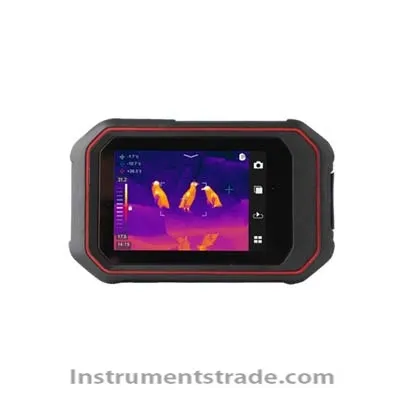

C16 pocket thermal imager characteristic: 1. Core self-developed infrared detector 2. Adopting a 160 * 120 pixel amorphous silicon infrared detector 3. Simple three proof performance, not easy to deal with 4. IP66 waterproof and dustproof, 5. Strong drop resistance 6. Professional response to complex environments with high temperature, high humidity, and dust 7. Full temperature measurement scene coverage 8. From home, electrical, and building temperature measurement to maintenance, HVAC, and industrial testing 9. High frame smoothness without buffering 10. The screen display is smooth without delay, 11. Stable and accurate temperature measurement without any lag 12. Professional temperature measurement function 13. High and low temperature capture, average temperature measurement 14. Real time movable point, area, and line temperature measurement 15. Temperature alarm function Technical parameters: 1. Detector Performance Detector Type: Non cooled focal plane microcalorimetry type Pixel: 160 × 120 2. Image performance lens: 3.85mm/F1.0 Spatial resolution: 4.4mrad Thermal sensitivity: ≤ 0.06 ℃ @ 30 ℃ Frame rate: 50/60Hz Focusing method: no focusing required Wavelength range: 8-14um 3. Image display LCD screen: 3.5” TFT color LCD, touch screen Image display: Infrared image and visible light can be quickly switched, infrared image and visible light image are picture in picture and fused Palette: 6 color palettes to choose from (including iron red, rainbow, black and white, black and white reversal, etc.) Image processing: automatic/manual adjustment of contrast and brightness, automatic enhancement mode 4. Measurement temperature range: -20 ℃ -+350 ℃ Accuracy: ± 2 ℃ or ± 2% (reading range), take the larger value Temperature measurement calibration: automatic/manual Measurement mode: Real time movable point, movable area (highest and lowest temperature capture, average temperature measurement), line temperature measurement, temperature alarm (sound, color) 5. Power battery: rechargeable lithium battery, built-in Working hours: ≥ 4h Charging method: USB random charging Power saving mode: automatic sleep, automatic shutdown 6. Other storage methods: Built in memory 16GB Lighting: Supports Gravity sensing: Yes, UI automatically changes direction Language: Multiple languages including Chinese and English Color: Red and Black Infrared image format: JPEG format, with infrared raw measurement data image; MPEG4 format, with recording of infrared raw measurement data 7. Environmental parameters Operating temperature: -15 ℃ -+50 ℃ Storage temperature: -40 ℃~+70 ℃ Humidity: ≤ 95% (non condensing) Protection level: IP66 Impact resistance: 30G, IEC68-2-29 Vibration resistance: 2G, IEC68-2-6 Fall: 2 meters 8. Physical characteristics Weight: 200g Size: 135mm × 90mm × 26mm
