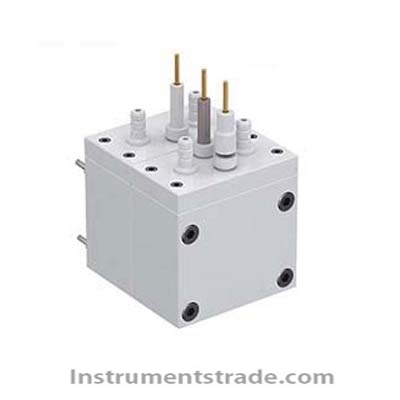

C032-1 All tetrafluoro H-type replaceable membrane electrolytic cell
Introduction: The working principle of the electrolytic cell is to allow the current to pass through the electrolyte solution (or molten electrolyte) and cause a redox reaction at the cathode and anode, so as to realize the conversion of electrical energy into chemical energy. Technical features: 1. The working electrode, auxiliary electrode and reference electrode of the electrolytic cell can be matched according to the needs, and the electrodes must be lengthened. 2. The body material of the electrolytic cell is polytetrafluoroethylene 3. The electrolytic cell is often used in the three-electrode system. The volume of the electrolytic cell is 25ml and 40ml, and can also be customized according to requirements. 4. The electrolytic cell is a relatively sealed electrolytic cell system. The cathode chamber (working electrode) and the anode chamber (comparison electrode) are isolated by an ionic membrane (provided by the user). Specific Electrode and Working Electricity Very same room, effectively reduce R drop. 5. The sealing part of the cell body of the electrolytic cell adopts the form of pressing plate, so that the lid and the cell body can be sealed. 6. The electrode part of the electrolytic cell is sealed on the PTFE plug, and the sealing effect is achieved by the sealing screw extrusion ring 7. The electrolytic cell is equipped with an aeration device that can ventilate under the liquid surface, and different shapes of aeration devices are selected for the atmosphere according to different experiments. For example, straight-type aeration is used for carbon reduction, and L-type aeration is used for nitrogen reduction.
Introduction: The working principle of the electrolytic cell is to allow the current to pass through the electrolyte solution (or molten electrolyte) and cause a redox reaction at the cathode and anode, so as to realize the conversion of electrical energy into chemical energy.
