Position: Home > > Lab general equipment > Purification equipment > Distillation apparatus > BYZLY-6Y Integrated Distillation Apparatus for chemistry lab

BYZLY-6Y Integrated Distillation Apparatus for chemistry lab

Product ID:SYCHZL027

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberBYZLY-6Y
    Brand NameSHANGHAIBINGYUE
    Payment TermsT/T, paypal

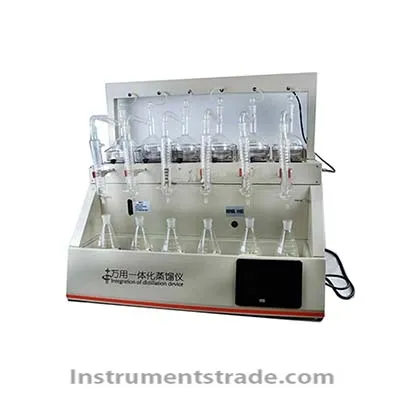

    BYZLY-6Y Integrated Distillation Apparatus

    Introduction:
    The BYZLY-6 series universal distillation apparatus is a new type of intelligent distillation processing device that integrates constant temperature heating, automatic control of the distillation end point, and cooling water circulation in accordance with the laboratory distillation pretreatment operating procedures. The instrument experimented with functions such as precise temperature control, automatic anti-suckback, uniform heating, anti-bumping, and intelligent end point control. Easy to use, energy saving and environmental protection. After the verification of the distillation recovery rate of the measurement certification laboratory, the result is accurate and reliable, and the recovery rate is more than 95%.
    Scope of application:
     Environmental protection industry, disease control, aquatic products, water supply and drainage, universities, scientific research institutes, factories and mining enterprises and various chemical laboratories
     It is especially suitable for the distillation treatment of volatile phenol, cyanide, ammonia nitrogen, water in Kjeldahl nitrogen oil and other items.
    Features:
    1. Heating method: imported far-infrared ceramic heating furnace, infrared radiation heating (no open flame heating, waterproof)
    2. Distillation end point control: automatic detection of distillation end point function, dual control of weighing and time, the distillation volume is controlled within ±2ml, and the degree of automation is high;
    3. Cooling method: closed internal circulation return system, without external cooling water source;
    4. Anti-reverse suction: equipped with anti-vacuum solenoid valve with anti-reverse suction function
    5. Single hole single temperature, imported temperature sensor, temperature digital display, clear data, clear at a glance
    6. 7-inch large LCD touch screen control, one-button operation, simple and convenient operation
     Technical Parameters:
    Model: BYZLY-6Y (simple configuration)
    Number of distillation units: 6 far-infrared ceramic heating furnaces
    Heating time: electric heating, single hole single control
    Temperature range: room temperature -400°C
    Time control: 0-999min
    7-inch large LCD touch screen display: None
    Rated voltage: 220V/50HZ
    Anti-suction: None
    Weighing control: None
    Cooling method: external cooling water


  • Introduction:
    The BYZLY-6 series universal distillation apparatus is a new type of intelligent distillation processing device that integrates constant temperature heating, automatic control of the distillation end point, and cooling water circulation in accordance with the laboratory distillation pretreatment operating procedures. The instrument experimented with functions such as precise temperature control, automatic anti-suckback, uniform heating, anti-bumping, and intelligent end point control. Easy to use, energy saving and environmental protection. After the verification of the distillation recovery rate of the measurement certification laboratory, the result is accurate and reliable, and the recovery rate is more than 95%.
    Scope of application:
     Environmental protection industry, disease control, aquatic products, water supply and drainage, universities, scientific research institutes, factories and mining enterprises and various chemical laboratories
     It is especially suitable for the distillation treatment of volatile phenol, cyanide, ammonia nitrogen, water in Kjeldahl nitrogen oil and other items.
