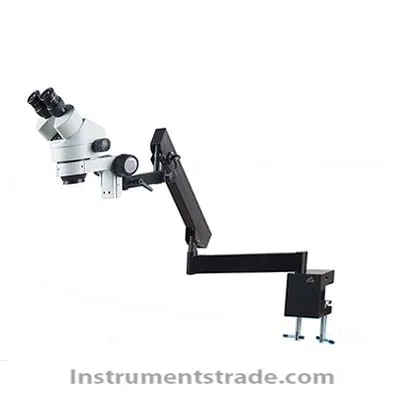

BT-SZM45-STL6 Stereoscopic Microscope

Product ID：GSXshw024

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBT-SZM45-STL6

Brand NameSZBAITEWEI

Payment TermsTT，PAYPAL，Alibaba.com Pay

BT-SZM45-STL6Stereoscopic Microscope
Introduction:
Provide high-definition optical systems and durable and reliable operating mechanisms.
Complete accessories and diverse combination configurations.
Meet the high-precision requirements of modern biology, medicine, scientific research, modern electronic industry online detection, and other technological industries.
Technical parameters:

magnification	Standard configuration: 7X-45X, optional eyepiece and auxiliary objective can be expanded to 3.5X-270X, continuous zoom
eyepiece	Standard configuration: 10X/20mm, large field of view, wide angle, high eye point, providing convenience for observers wearing glasses
Optional eyepiece	WF10X/22mm、WF15X/16mm、WF20X/12mm、WF25X/9mm、WF30X/8mm
viewing head	45 ° tilt, 360 ° rotation, pupil distance 54-76mm; Bilateral visual acuity adjustment (± 5)
	Hinged binocular
objective	0.7X-4.5X continuous zoom, objective zoom ratio 6.4:1 ensures image plane homogeneity
Auxiliary objective	Optional 0.3X, 0.7X, 0.75X, 0.5X, 1.5X, 2X
Focusing bracket	A3 focusing bracket handwheel with adjustable elasticity and lifting range of 50mm
base	TL6-A rockerarm universal bracket, optional with other bases, see the base component diagram for details
lighting	Various fluorescent and LED ring lights can be optionally selected, please refer to the external light source component diagram for details

Detailed configuration list:

eyepiece	Standard configuration		Auxiliary objective 0.5X		Auxiliary objective lens 1.5X		Auxiliary objective 2X
	Working distance 100mm		Working distance 165mm		Working distance 45mm		Working distance 30mm
	Magnification factor	Field of view range	Magnification factor	Field of view range	Magnification factor	Field of view range	Magnification factor	Field of view range
10X/20mm	7X	28.6mm	3.5X	57.1mm	10.5X	19mm	14X	14.3mm
	45X	4.4mm	22.5X	8.9mm	67.5X	3mm	90X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21X	10.7mm
	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135X	1.7mm
20X/10mm	14X	14.3mm	7X	28.6mm	21X	9.5mm	28X	7.1mm
	90X	2.2mm	45X	4.4mm	135X	1.5mm	180X	1.1mm
25X/9mm	17.5X	12.9mm	8.85X	25.4mm	26.2X	8.6mm	35X	6.4mm
	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225X	1.0mm
30X/8mm	21X	11.4mm	10.5X	22.9mm	31.5X	7.6mm	42X	5.7mm
	135X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270X	0.9mm
