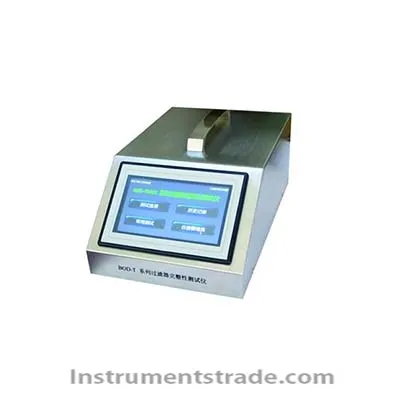

Features: 1. It can be tested both online and offline to meet various test requirements; 2. Microprocessor technology, accurate self-test, basic bubble point test, diffusion flow test, water intrusion test; 3. Large-capacity data storage, can store 10,000 sets of data; 4. The test results can be printed in real time, which is convenient for archiving; 5. Can test a variety of filter equipment; 6. 7 inch digital LCD touch display. Scope of application 1. Disc membrane: various filter membranes from Φ25 to Φ300; 2. Standard cartridge: 2.5″ to 40″, 1 core to 9 cores; 3. Capsule filter element (Capsule); 4. Mini cartridge. Technical parameter: Power Requirements/Power: 100-240V AC, 50/60Hz; 100W Air source requirements: clean and dry air or nitrogen (4000mabr-6999mabr) Maximum operating pressure: 6999 mbar Minimum inlet pressure: 4000 mbar Test range: 500-6999mbar Test accuracy: Sensitivity: ± 1.0 mbar; Bubble point: ±60 mbar; Operating conditions: Ambient temperature: +5℃ ~ +35℃; Relative humidity: 10-80% Test time: 5±1min for system air tightness test; 5±2min for basic bubble point test Printing function: wide-line Chinese printing, you can call the stored data at any time to print the archive History record function: store 10000 groups of test results Display: 5-inch LCD touch screen Language option: Chinese Instrument size: 380×240×200mm Instrument weight: 6KG
Features: 1. It can be tested both online and offline to meet various test requirements; 2. Microprocessor technology, accurate self-test, basic bubble point test, diffusion flow test, water intrusion test; 3. Large-capacity data storage, can store 10,000 sets of data; 4. The test results can be printed in real time, which is convenient for archiving; 5. Can test a variety of filter equipment; 6. 7 inch digital LCD touch display.
