Product features:

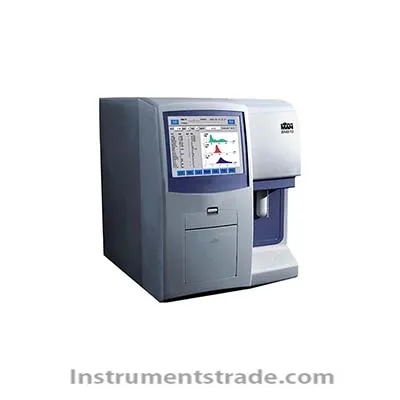

The blood cell analyzer is also called the blood cell analyzer, the blood routine examination instrument, the blood analyzer, the blood cell counter, the blood cell meter and so on. Performance parameters:
1. Automatic sampling, detection speed greater than 60 samples per hour
2. White blood cells triplet, providing 23 precise parameters (including WBC. RBC.PLT color histogram)
3. Three counting modes: full parameter WBC / HGB / RBC / PLT
4. Floating boundary sign and manual adjustment of cluster technology
5. The host computer has perfect Chinese input and output function
6. 9.7ul venous blood is absorbed by simply clicking the "count" key.
7. Automatic quantitative predilution of 20ul peripheral blood by host computer
8. Built-in high-efficiency thermal recorder, external printer
9. Wide range Power supply Design AC100V-264V
10. 8.4 Color large screen 800m 600 dot array TFT touch screen with all parameters and histograms displayed on the same screen
11. The mainframe automatically stores all parameters (including histograms) of more than 30000 samples that can be plugged into the U disk for a long period of time. Technical indicators:
1, Working environment: ambient temperature: 15 ℃, 35 ℃, relative humidity: 45%
2, Working voltage: 220 V ±10% 50Hz ±1Hz input power: ≤ 150VA
3. Technical parameters:
3. 1, Automatic three-class blood cell analyzer.
3.2The detection parameter ≥ 23 items (including three color histograms).
3. 3, Measuring principle: RBC and WBC double channel cell technique, electrical impedance method and HGB colorimetric method.
3.4 The venous whole blood and predilute end blood were tested: venous blood was 9.7 UL, predilute late blood was 20uL.
3.5, Anticoagulant direct test, the final blood predilution must be done by the instrument automatic quantitative, and can be repeated test once.
3.6, The test speed ≥ 60 samples per hour.
3.7. The display screen ≥ 8.4-inch color large screen 800m 600 dot matrix TFT touch screen, all parameters and histogram display on the same screen.
3.8. All Chinese operation, the host can realize Chinese input and output and print five kinds of Chinese report form containing normal value range, built-in thermal printer, can be external printer.
3.9, The host can automatically store 30000 copies of the full results containing three histograms. 3.10, complete plugging function, with positive, backwash, burning three row plugging function. 3.11, the instrument has perfect hole blocking alarm warning function.
3.12, International standard RS232 interface, double USB interface, can use U disk software upgrade.
3.13, Configuration: the instrument is equipped with a keyboard, mouse can be directly connected to the operation.
3.14, The instrument mainly sampling quantitative and sampling parts such as: syringe, sampling mechanism lead screw, gear, etc., made of glass, stainless steel, ceramics and other wear resistant materials.
3.15, The cross contamination rate is low and the HGB of RBCN is less than 0.5, and the PLT is less than 1.
3.16, With wide voltage design, suitable for complex voltage environment, up to 100-264V / 50 / 60HZ.
