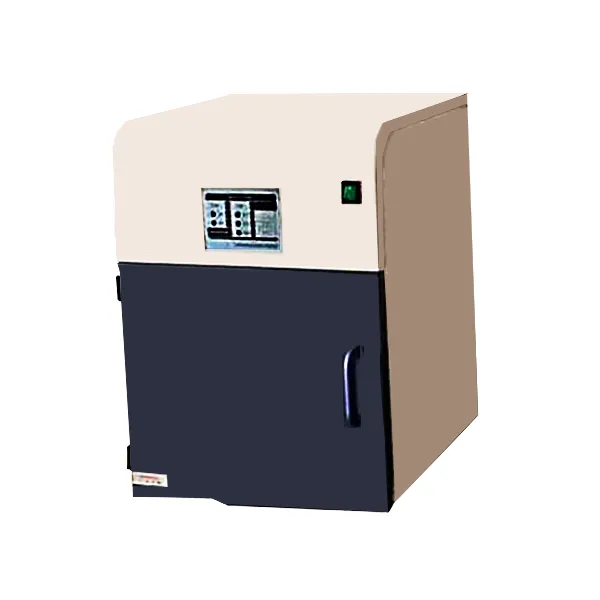

Technical parameters: Effective image number: 1280 x 1024 (1.3 million) Image size: 4.65 x 4.65um Number of bits: 8 bit Faith ratio: 56dB Shutter control: electronic shutter Shutter speed: 1 / 1 / 1000 / 1 / 16 s Mirror head: fully imported electric 6 times zoom F1.0 Connection: USB 2.0 Maximum sample size 21x26cm UV transmission nm 254 / 302 / 365 optional Main features: 1. Full import high resolution camera is used, the image is clearer; 2. Sensitivity: 20pg double-stranded DNA 3. The maximum size of the sample can reach 21 x 26 cm. 4. LED white light reflecting lamp, long service life; 5. Dark box through mold production, good sealing, collection system built in, ash and dust prevention; 6. The automatic control of zoom, focus, aperture, transmission ultraviolet lamp and reflection lamp can be carried out through the chassis panel or computer. 7. UV automatic protection function, when the sample is taken out, the UV lamp source is automatically closed; 8. Equipped with ultraviolet gelling device, it can enter the state of cutting glue, facilitate the recovery of specific nucleic acids of the sample; 9. 590nm ultra multilayer coating helical standard filter, and easy to replace; 10. Uniform transmission UV / white light conversion plate, suitable for electrophoresis carrier such as protein gel without UV excitation; 11. The size of the system is 32 cm (long * high * deep); 12. The software function is stable, lifelong free upgrade; 13. Pass CE certification and export for export.
