BG-gdsAUTO 320 UV gel imaging analysis system for Protein analysis

Product ID:SHCXnjcx048

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberBG-gdsAUTO
    Brand NameBEIJINGBAIJING
    Payment TermsT/T, paypal

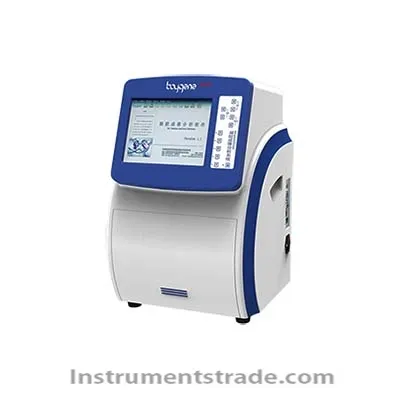

    BG-gdsAUTO 320 UV gel imaging analysis system

    Introduction:
    BG-gdsAUTO 320 all-in-one machine design, can be used for DNA/RNA gel electrophoresis imaging, molecular weight calculation, single band analysis; protein lane analysis; Dot-blot electrophoresis analysis; colony count-Petri dish count; measurement area/density; support blotting Imaging of hybrid membrane autoradiography plastic plates, enzyme-labeled plates, thin-layer chromatography plates, etc.
    Features:
    1. All-in-one design: built-in computer, no need to reconfigure, saving laboratory space; large display screen, support touch operation, can be fully automatic control of zoom, focus, aperture, light source adjustment through the chassis panel and computer;
    2. High sensitivity: equipped with high-resolution camera, imported high-pass lens head and closely arranged ultraviolet transmission light box;
    3. Equipped with a special glue cutting device to avoid the damage of ultraviolet light to the experimenter;
    4. Humanized software: The pre-installed Baygene software integrates four major functions, including image acquisition, image processing, data analysis, and report management.
    Technical Parameters:
    camera:
    Resolution: 1280×1024 (1.31 million)
    Pixel size: 5.2μm×5.2μm
    Signal to noise ratio: 56dB
    Detection sensitivity: as low as 20pg of nucleic acid
    Lens:
    Motorized lens: high transparent auto zoom lens, F1.2, 8-48mm
    Filter: professional-grade coating filter UV/IR 590nm, optional: 535/605/699nm
    light source:
    Light intensity: up to 1000μm/cm3
    Illumination mode: UV transmission, white light transmission (ultraviolet conversion white light board), white light reflection
    Excitation light source: transmission: 312nm (254nm, 365nm optional);
    Double-side reflection: LED reflective white light
    Ultraviolet transmission area: 200×250mm
    Visible light transmission area: 210×260mm
    Equipped with glue cutting device: drawer type sample loading platform, the line of sight is 90° with the sample, which protects the operator and facilitates the glue cutting operation
    Timing shutdown: 15 minutes of no operation to turn off the UV light source, effectively prolonging the service life of the UV lamp and UV glass
    All-in-one design: It can be controlled by a computer or chassis panel to perform automatic control of zoom, focus, iris, transmission UV lamp and reflector lamp
    Onboard display: 12.1 inch industrial touch LCD screen
    High-performance and low-power I3 processor, dual-core four-thread 1.8G, solid state drive 128G, 4G memory, Windows10 system
    Equipped with standard network ports, USB, COM, VGA, and keyboard and mouse, no need for additional computer
    Analysis software: customizable software Baygene Gel Image Analysis
  • Introduction:
    BG-gdsAUTO 320 all-in-one machine design, can be used for DNA/RNA gel electrophoresis imaging, molecular weight calculation, single band analysis; protein lane analysis; Dot-blot electrophoresis analysis; colony count-Petri dish count; measurement area/density; support blotting Imaging of hybrid membrane autoradiography plastic plates, enzyme-labeled plates, thin-layer chromatography plates, etc.
