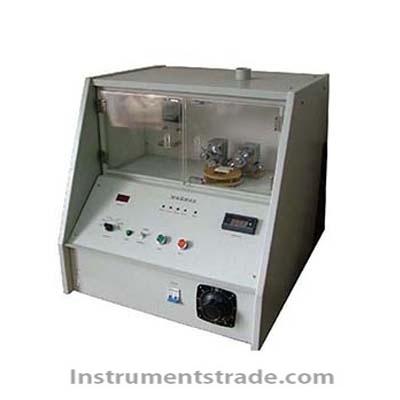

BDH-20KV tracking tester leakage for Insulation material testing

Product ID:WSHdyjc015

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberBDH-20KV
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
    The testing machine to meet the requirements of GB1411-2002, the plastic, film, resin, mica, ceramics, glass, insulating oil, insulating paint, cardboard and other materials arc resistance test using computer control, the test process can be observed online test curve; Automatically store test conditions and test results and other data, and can access, display, print.
    The instrument controlled by the pc, through our company independently developed a new intelligent digital precision embedded Siemens central unit cpu system and the host computer software to control two parts to complete, through the pc usb serial port to obtain data transfer data can be as high as 3M / s RS232 serial port Unmatched by the upper computer and the next bit machine communication without delay so that the boost rate is truly uniform, accurate, and can accurately measure the leakage current data, current real-time acquisition. Real-time drawing test curve, showing the test data to determine the accuracy, and can save, analyze, print, modify the test data. And extract the experimental data color contrast.
    Features:
    1. The instrument is equipped with advanced fault alarm system to prevent user operation failure instrument dangerous. (Upper computer alarm and lower computer alarm)
    2. Support short circuit test requirements.
    3 high voltage test accuracy.
    4. Test voltage continuously adjustable.
    5. Current can be collected to mA level and real-time acquisition.
    6. The use of advanced non-contact original uniform pressure to phase out the former mechanical pressure regulator
    7. Arc electrode: tungsten steel, carbon steel, platinum
    8. High quality SUS304 stainless steel chassis
    9. Support man-machine remote operation to create a new chapter in domestic control machinery
    10 using state-of-the-art wireless Bluetooth control, support for 232 / USB / AP network port.
    Technical Parameters:
    1, the input voltage: AC 220V
    2, the output voltage: AC 0--20 KV;
    3, electrical capacity: 1.5 KVA
    4, test methods: intermittent arc, continuous arc
    5, test current: 10MA-20MA-30MA-40MA optional
    6, test voltage control error: ≤ 1%
    7, arc off-time error: <5ms
    8, the test voltage continuously adjustable: 0--20 KV
    9, electrode specifications: stainless steel plate electrode 25.4mm * 12.7mm * 0.15mm
    Tungsten steel electrode ¢ 2.4mm * 70mm
    Electrode configuration angle of 110 degrees
    Electrode weight: 50G
    10, safety precautions: (1) overpressure protection
    (2) over-current protection
    (3) short circuit protection
    (4) security door open protection
    (5) Software misoperation protection


  • Introduction:
    The testing machine to meet the requirements of GB1411-2002, the plastic, film, resin, mica, ceramics, glass, insulating oil, insulating paint, cardboard and other materials arc resistance test using computer control, the test process can be observed online test curve; Automatically store test conditions and test results and other data, and can access, display, print.
    The instrument controlled by the pc, through our company independently developed a new intelligent digital precision embedded Siemens central unit cpu system and the host computer software to control two parts to complete, through the pc usb serial port to obtain data transfer data can be as high as 3M / s RS232 serial port Unmatched by the upper computer and the next bit machine communication without delay so that the boost rate is truly uniform, accurate, and can accurately measure the leakage current data, current real-time acquisition. Real-time drawing test curve, showing the test data to determine the accuracy, and can save, analyze, print, modify the test data. And extract the experimental data color contrast.
