Introduction:

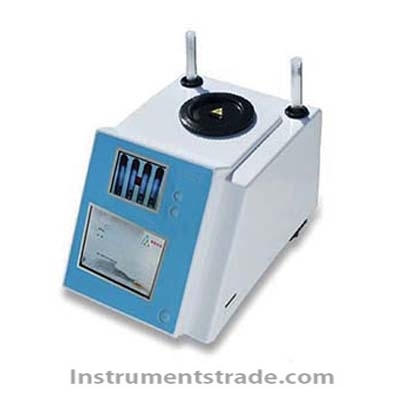

BA-30RDY automatic video melting point instrument uses the capillaries specified by the Pharmacopoeia as the sample tube. The filled sample tube is inserted into the heating furnace body, and the camera is photographed by a high-resolution camera. The TFT color screen displays the sample melting process intuitively and automatically through the digital imaging detection sensor The temperature at which the sample melted was measured.
BA-30RDY automatic melting point perfect combination of high-precision temperature control technology and camera technology, not only to provide users with accurate, stable and reliable test results, but also to bring users efficient and convenient test experience. High-definition video can be easily and clearly see the entire sample melting process, automatic detection of real-time map shows the user-friendly sample accurately measured melting point and soluble distance. Automatic Melting Point is widely used in chemical industry, pharmaceutical research, pharmaceuticals, spices, dyes and other essential organic crystal material instruments. Features:
1, can measure four samples at the same time.
2, HD video recording function, easy to observe and look back.
3, from room temperature to 350 ℃, large temperature range.
4, heating rate 0.1 ℃ / Min-20 ℃ / Min stepless adjustment.
5, HD color large screen to enlarge the window.
6, in line with pharmacopoeia test methods, including the European Pharmacopoeia, the United States Pharmacopoeia, Chinese Pharmacopoeia.
7, can connect the printer, real-time data printing and historical data printing. Technical Parameters:
Model: BA-30RDY
Detection method: Visual inspection
Temperature range: room temperature - 350 ℃
Heating rate: 0.1 ℃ -20 ℃
Temperature resolution: 0.1 ℃
Accuracy: ± 0.3 ℃ (<250 ℃); ± 0.5 ℃ (> 250 ℃)
0.1 ℃ / min when the melting point Repeatability: ± 0.1 ℃
Standard capillary size: diameter 1.0mm, diameter 1.4mm
Display: TFT HD true color screen
Data Interface: USB RS232 SD network port
Magnification: 7
Processing capacity: 4 / batch
Video function: take pictures
Save result: 200
Introduction:
BA-30RDY automatic video melting point instrument uses the capillaries specified by the Pharmacopoeia as the sample tube. The filled sample tube is inserted into the heating furnace body, and the camera is photographed by a high-resolution camera. The TFT color screen displays the sample melting process intuitively and automatically through the digital imaging detection sensor The temperature at which the sample melted was measured.
BA-30RDY automatic melting point perfect combination of high-precision temperature control technology and camera technology, not only to provide users with accurate, stable and reliable test results, but also to bring users efficient and convenient test experience. High-definition video can be easily and clearly see the entire sample melting process, automatic detection of real-time map shows the user-friendly sample accurately measured melting point and soluble distance. Automatic Melting Point is widely used in chemical industry, pharmaceutical research, pharmaceuticals, spices, dyes and other essential organic crystal material instruments.
