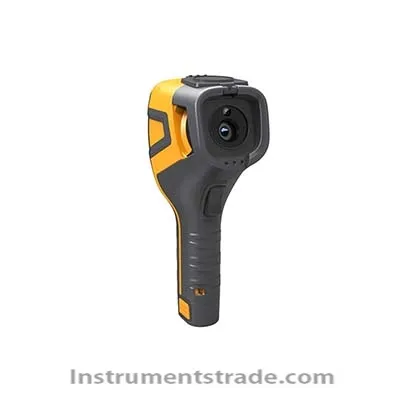

B series tool - type infrared thermal imager for Electrical equipment testing

Product ID：CLWDhwrx019

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberB series

Brand NameWHGDZGKJ

Payment TermsT/T, paypal

Brief introduction:
B series temperature measuring infrared thermal imager is simple in appearance, ergonomic design and easy to operate without training. The new upgraded product integrates infrared and visible light into one, adopts high cost performance design with rich functions, reliable performance and accurate temperature measurement. It can effectively improve the efficiency of testing work and is a powerful tool to guarantee the production process and product quality in the industrial field.
Product features:
• integrating infrared and visible light into one, the observation is more intuitive and the temperature measurement is more accurate
• a variety of resolutions is available to suit different application requirements
• 3.5" bright display, adjustable brightness, still clear in outdoor sun
• tool thermal imager, easy to operate, easy to use without training
• uni-body integrated metal frame design is sturdy and durable, and convenient for later maintenance
• standard Micro USB interface for data transmission and power supply
• standard wi-fi modules that can be connected to mobile devices and Shared in real time
• rechargeable lithium battery has a working time greater than or equal to 4H
• optional charging mode, adapter/computer/car charger/portable power supply
• standard accessories: thermal imager, lithium battery, USB charging adapter (5V/2A), adapter adapter adapter, USB cable, wrist band, SD card (16GB), quick operating guide, operation manual, CD
• optional accessories: luggage, seat charger, lithium battery
Technical parameters:

B line	B160	B160V	B256V	B320V
Image and optics
Infrared resolution	160×120	160×120	256×192	320×240
NETD	≤50mk
Focal length	11mm/F1.0	5mm/F1.2	7mm/F1.1	7mm/F1.1
Viewing Angle	20.6°×15.5°	30°×23°	34.5°×26.5°	42.5°×32.5°
Spatial resolution	2.25mrad	3.30mrad	2.36mrad	2.33mrad
Infrared frame frequency	25Hz/9Hz
Focusing way	hand movement (HM)	Fixed focus
Detector
Detector type	Uncooled v /8~14 m
Like yuan size	25μm	17μm
Visible light
Resolution ratio	No	640×480,Automatic focusing
Image display
Display screen	3.5-inch LCD screen (without touch), resolution 320 × 240
Image schema	Infrared	Infrared, visible light, MIF, PIP
Electronic amplification	×2，×4
Palette	6
Temperature measurement
Temperature measurement range	-20℃~350℃
precision	±2 ℃ or ±2% (large value), ambient temperature 15 ℃ ~ 35 ℃, target temperature above 0 ℃
Measurement analysis
Point temperature measurement	center
Automatic high/low temperature tracking	Zone hottest tracking/zone lowest tracking
Emissivity correction	Yes, 0.01 ~ 1.00
Call the police	Area highest temperature alarm/area lowest temperature alarm
Storage
A storage medium	SD Card (Standard 8G)	Built-in SD card (16G), pluggable
Image format	JPG,With temperature data
Raw video streaming	Through USB
interface
External interface	Micro USB（Picture + real-time video transmission）
WIFI	No	Yes (mobile terminal connection for video transmission and control of thermal imagers)
Power supply system
Power supply	Rechargeable lithium battery, working time ≥ 4H, local charging / charging, timing shutdown / sleep mode
Environmental parameters
Working temperature	-10℃~50℃
Storage temperature	-40℃~70℃
encapsulation	IP43,Resistance to drop 1 m
humidity	10% ~ 95%, Non-condensing
impact	30g （ IEC 60068-2-27 ）
vibration	10HZ~150HZ~10HZ 0.15mm（ IEC 60068-2-6 ）
Weight	740g
Size	258mm×98mm×90mm

Brief introduction:
B series temperature measuring infrared thermal imager is simple in appearance, ergonomic design and easy to operate without training. The new upgraded product integrates infrared and visible light into one, adopts high cost performance design with rich functions, reliable performance and accurate temperature measurement. It can effectively improve the efficiency of testing work and is a powerful tool to guarantee the production process and product quality in the industrial field.
