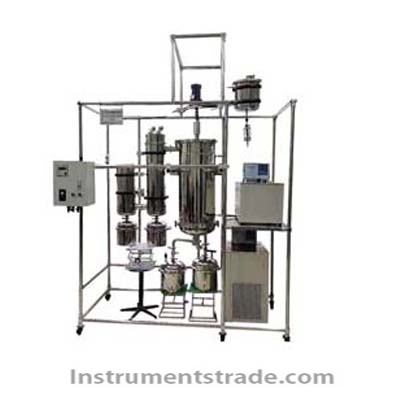

AYAN-F220S Molecular Distillation Apparatus for Cosmetic perfume purification

Product ID:SYCHZL030

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberAYAN-F220S
    Brand NameHANGZHOUANYAN
    Payment TermsT/T, paypal
     AYAN-F220S Molecular Distillation Apparatus

    Introduction:
    Molecular distillation is considered the safest and most efficient method of separation. It can be used to purify molecules with poor thermal stability and related compounds with low volatility and high boiling points. In a high vacuum environment, molecular distillation is characterized by low distillation temperature, short heating time for materials, and rapid separation. It is widely used in various fields such as petrochemical, pharmaceutical and chemical, essential oil purification, cosmetics and perfume purification.
    Structure:
    304/316L stainless steel material: The main body of the equipment is made of high-quality 304/316L stainless steel material to ensure the stability and service life of the equipment, thereby ensuring a lasting and efficient production rate.
    PTEF material sealing Fully automatic operation: The equipment sealing system uses high-quality PTFE materials to ensure the airtightness of the entire system, and high vacuum, fully automatic operating system, automatic feeding, automatic collection, so as to ensure efficient separation efficiency.
    Wiped blade short-path distillation system: The wiped blade short-path distillation system made of high-quality stainless steel 304/316L can obtain the highest separation efficiency with the shortest operating time.
    Features:
    1. Made of high-quality 316 and 304 stainless steel, with high stability and long instrument life;
    2. Short path distillation, short residence time of materials (separation can be successful in a few seconds);
    3. High vacuum, low distillation temperature, high distillation efficiency;
    4. Continuous distillation without interruption;
    5. A variety of models are available, suitable for small-scale experiments, pilot-scale production or large-scale production,
    6. Customizable services, can provide a complete set of services;
    7. Plug and play, automatic distillation, no operation required;
    Technical Parameters:
    Product model: AYAN-F220S
    Inner diameter (mm): 220
    Evaporation area () 0.50
    Condensing area (): 0.65
    Feeding volume (L): 5
    Processing flow L/H: 2.0-15.0
    Motor power (W): 120
    Maximum speed (r/min): 450
    Light component collection bottle/L: 5L
    Reconstituted collection bottle/L: 5L
    Lengjing: Yes
    External condensing device: optional
    Cooling device: Yes
    Vacuum (pa): <10Pa
    Heating temperature (°C): 200
  • Introduction:
    Molecular distillation is considered the safest and most efficient method of separation. It can be used to purify molecules with poor thermal stability and related compounds with low volatility and high boiling points. In a high vacuum environment, molecular distillation is characterized by low distillation temperature, short heating time for materials, and rapid separation. It is widely used in various fields such as petrochemical, pharmaceutical and chemical, essential oil purification, cosmetics and perfume purification.
    Structure:
    304/316L stainless steel material: The main body of the equipment is made of high-quality 304/316L stainless steel material to ensure the stability and service life of the equipment, thereby ensuring a lasting and efficient production rate.
    PTEF material sealing Fully automatic operation: The equipment sealing system uses high-quality PTFE materials to ensure the airtightness of the entire system, and high vacuum, fully automatic operating system, automatic feeding, automatic collection, so as to ensure efficient separation efficiency.
    Wiped blade short-path distillation system: The wiped blade short-path distillation system made of high-quality stainless steel 304/316L can obtain the highest separation efficiency with the shortest operating time.
