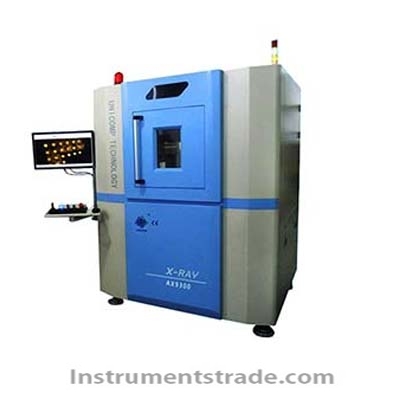

AX9300 3D X - ray detection equipment for LED detection

Product ID:WWsscx011

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberAX9300
    Brand NameYM
    Payment TermsT/T, paypal
    Features:
    1. Has a 160 kv 1 mu m open ray source
    2. Millions of high resolution FPD detector at a high speed
    3. 3 d CT CT scanning system
    4. As much as 2000 times more geometrical magnification, high-definition real-time image
    5.6 axis linkage, 360 ° Angle observation
    6. Can be tested for CNC programming, high accuracy and repeat precision
    Areas of application:
    SMT. Detection of BGA CSP flip chip and leds
    Semiconductor packaging components Battery industry
    Aluminum die-casting die casting, moulding plastic
    Ceramic products, and other special industry test
    Technical parameters:
    Motion control method: the mouse & rocker & keyboard
    The biggest cargo size: 500 * 500 mm
    Objective table movement control shaft: 450 * 400 mm
    Tilt Angle detection area biggest: X, Y
    Tilt detector: 350 * 350 mm
    Tube type: open decay focus tube
    The most great power: 1000VA
    Maximum target power: 10 w
    Voltage/current: 160 kv / 1000 mu A
    Resolution: 1 mu m
    Flat-panel detector: FPF0707
    Security: < 1 mu Sv/h
    Length * width * height: 1500 * 1600 * 1850 mm
    Weight: 4300 kg
    System magnification: 10000 x





  • Features:
    1. Has a 160 kv 1 mu m open ray source
    2. Millions of high resolution FPD detector at a high speed
    3. 3 d CT CT scanning system
    4. As much as 2000 times more geometrical magnification, high-definition real-time image
    5.6 axis linkage, 360 ° Angle observation
