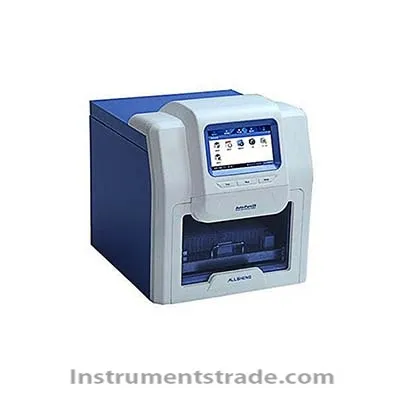

Auto-Pure20B automatic nucleic acid extractor for medical test

Product ID:SHFZhsch023

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberAuto-Pure20B
    Brand NameHZAS
    Payment TermsT/T, paypal
    Brief introduction:
    Auto-Pure series automatic nucleic acid extractor is a device for extracting and purifying nucleic acid by magnetic bead method. After the sample is cracked, the released nucleic acid molecules are specifically adsorbed on the surface of the magnetic beads. They are magnetically absorbed, transferred and washed by the built-in magnetic rods. Finally, the nucleic acid molecules are dissolved in the elution solution, and mixed with different kinds of magnetic bead nucleic acid reagents. Can be quickly extracted from animal and plant tissues, blood, body fluids, criminal samples and other samples of nucleic acid.
    Characteristics:
    Single machine operation 7 inch color touch screen display, simple and easy to use; According to the requirements of custom temperature, program, meet the requirements of different reagents;
    The operation time is 15-40 min / time, and at most 20 / 32 samples can be extracted at the same time.
    The nucleic acid yield is high, the magnetic bead loss is low, and the result is reproducible. Ultraviolet disinfection function to reduce the contamination of samples in different batches;
    Open system, suitable for all kinds of magnetic bead extraction reagent;
    Drawer type injection (patent structure, safe and reliable;
    APP software will be configured to enable real-time monitoring of mobile devices. Advantages:
    1. Patented 5ml kit can be packaged separately
    2.The nucleic acid extraction and purification are carried out on the computer alone, and the waste of reagent is reduced.
    3.Large sample volume processing: maximum processing volume of 5 ml, maximum sample volume of 2 ml, improve detection sensitivity, to meet a variety of applications
    4.The patented nucleic acid sample is mixed about, especially suitable for the second generation sequencing free DNA extraction, nucleic acid sample construction, blood nucleic acid screening, nucleic acid hypersensitivity detection
    5.Wire rod design, high operating precision, large guide rail design, small clearance, more stable structure, more reliable;
    6. Patent drawer type injection, convenient for the laboratory personnel to place the kit;
    7.Open instrument parameter setting, can set itself: mixing speed, magnetic absorption, release, cooling fan and other functions;
    Performance indicators:
    Size: Auto-Pure20B
    Sample flux: 1 / 20
    Treatment volume: 50 / 5 000 μ l
    Magnetic bead recovery: > 95%
    Magnetic rod number: 20 The positive detection rate of the sample with sensitivity of 1: 100 copy is more than 95%.
    Purification of the difference between pores: CV < 5%
    Use of consumables: 5ml kit magnetic rod sleeve
    Cracking temperature: 120 at room temperature
    Elution temperature: 120 at room temperature
    Concussion mixing: an editable mix of different requirements
    Operation interface: 7 inch touch screen, 3 shortcut keys, external mouse
    Internal procedures: default 8 groups of programs, can store 100 groups of programs Program management: new, edit, save as, delete, etc.
    Instrument extension Interface: standard USB, Ethernet Port, Wireless wifi
    Lighting system: yes
    Disinfection: ultraviolet disinfection
    Exhaust mode: fan
    Data storage: storable, built-in SD card
    Maximum input power: 450W
    Volume W × D × H):400mm × 520mm × 450mm
    Weight: 30KG
