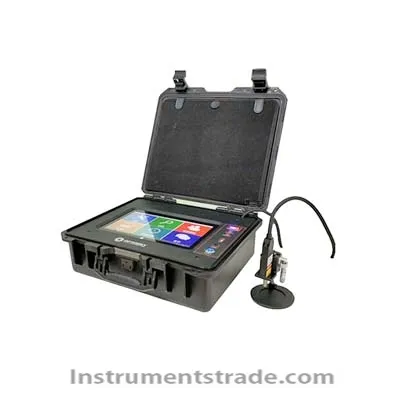

ATR3000-1064 portable Raman spectrometer Introduction: ATR3000-1064 is a portable Raman spectrometer with an excitation wavelength of 1064nm. It is a member of the ATR3000 series, which is well-known in the scientific research field. The ATR3000-1064 is equipped with a laser with an excitation wavelength of 1064 nm and a Raman filter set with high extinction ratio. It uses a highly sensitive InGaAs array detector and ultra-low temperature TE cooling for better signal-to-noise ratio and more. High dynamic range. Due to the low fluorescence of 1064nm, ATR3000-1064 avoids fluorescence interference and is suitable for detecting a large number of highly fluorescent samples such as dyes, inks, petroleum, biological samples and so on. The spectral coverage of the ATR3000-1064 is 200~260-1 with a spectral resolution of 13 cm-1. The small size, light weight and low power consumption make the ATR3000-1064 a laboratory-grade Raman test anywhere. Ideal for laboratory scientific research. Superior reliability and repeatability (temperature, long time) make the test results accurate and reliable, excellent low stray light conditions make the spectrometer have a wide range of applications, especially suitable for dark samples, colored samples, fluorescent samples, biological samples, bacteria, fuel Measurement of samples such as petroleum samples, vegetable oils, pharmaceuticals, explosives, etc. Features: 1. Low temperature cooling type linear InGaAs CCD sensor; 2. Ultra-low temperature refrigeration: -20 ° C 3. Ultra low noise circuit; 4. Powerful embedded software; 5. Eliminate the fluorescent background; 6. Peak search and display; 7.Android 6.0 operating system; 8.11.6-inch capacitive touch screen with multi-touch support; 9. HD touch screen, 1920X1080; 10.USB 2.0; 11. Friendly human-machine interface; 12. Battery life > 5h; 13. Support LAN remote control; 14.IP67 waterproof and dustproof; Application field Pharmaceutical engineering Public security, forensic analysis Agriculture and food safety Gem identification Environmental science Biology
Introduction: ATR3000-1064 is a portable Raman spectrometer with an excitation wavelength of 1064nm. It is a member of the ATR3000 series, which is well-known in the scientific research field. The ATR3000-1064 is equipped with a laser with an excitation wavelength of 1064 nm and a Raman filter set with high extinction ratio. It uses a highly sensitive InGaAs array detector and ultra-low temperature TE cooling for better signal-to-noise ratio and more. High dynamic range. Due to the low fluorescence of 1064nm, ATR3000-1064 avoids fluorescence interference and is suitable for detecting a large number of highly fluorescent samples such as dyes, inks, petroleum, biological samples and so on. The spectral coverage of the ATR3000-1064 is 200~260-1 with a spectral resolution of 13 cm-1. The small size, light weight and low power consumption make the ATR3000-1064 a laboratory-grade Raman test anywhere. Ideal for laboratory scientific research. Superior reliability and repeatability (temperature, long time) make the test results accurate and reliable, excellent low stray light conditions make the spectrometer have a wide range of applications, especially suitable for dark samples, colored samples, fluorescent samples, biological samples, bacteria, fuel Measurement of samples such as petroleum samples, vegetable oils, pharmaceuticals, explosives, etc.
