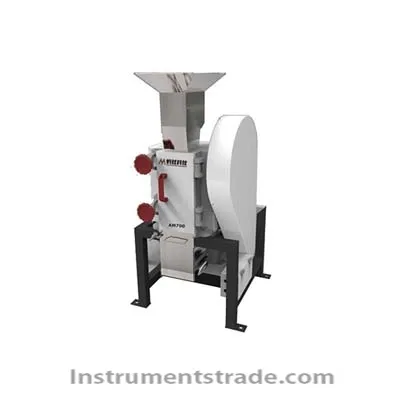

AM700 jaw crusher Introduction:
The AM700 is a fast and efficient crusher that smashes and pre-treats medium-hard, hard, brittle, and tough samples. The operation is simple, the processing amount is large, the gap adjustment and the zero point calibration ensure the repeatability of the experimental results. Working principle: AM700 jaw crusher, the sample enters from the anti-splashing funnel. Under the continuous extrusion and friction of the moving jaw and the static plate, the sample is crushed. When the sample size is smaller than the jaw gap, it is crushed. The sample enters the collection tank under the action of gravity, thereby completing the pulverization preparation of the sample. Application areas: building materials, ore, coal, ceramics, slag, etc. Features:
1. Large sample processing capacity and high degree of fragmentation
2. The final discharge size D90<2mm
3. The clearance of the jaw plate is continuously adjustable by the hand wheel
4. The front door of the crushing chamber can be opened for easy cleaning.
5. Different materials of the jaws are available
6. Feed size up to 120mm
7. Funnel anti-back splash design and dust removal interface
8. Zero point correction compensates for plate wear
9. The grinding chamber and the collecting tank are provided with a safety lock device Technical Parameters:
Sample type: medium hard, hard, brittle and tough
Feed size: less than 120*90mm
Discharge size: less than 2mm
Sample throughput: 300Kg / hour
Clearance: 0-40mm
Gap display mode: digital position display
Zero correction: Yes
Funnel: 120 x 90 mm
Collection tank volume: 10L
Width × height × depth: 600 × 1340 × 770mm
Power: 3kW
Net weight: ~ 350 kg
