Introduction

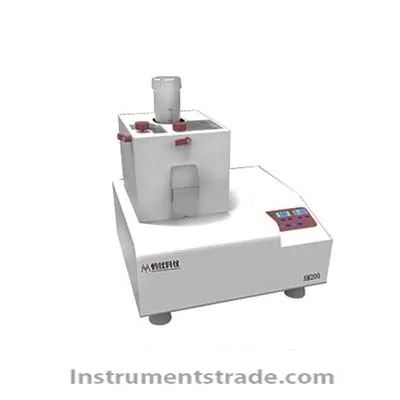

The AM200 is a classic type of grinder that comes from our traditional manual grinding method and is easy to operate. Soft, hard, brittle, and paste-like samples can be ground. The digital display speed allows for reproducible sample processing results. Difficult samples can be ground by heating, freezing or adding a grinding aid. Features
1.It can be dry-grinded, wet-grinded, freeze-grinded, and samples can be added for continuous work during the grinding process;
2.Uses a gentle and gentle grinding method to make the sample more uniform
3. Digitized time display to ensure repeatability of results
4.Adjustment of pressure and position of the crucible and adjustment of the scraper plate to ensure optimal grinding status
5.Mortar grinder and mortar are plug-in structure, no tools, easy to disassemble, easy to clean
6.The instrument has an observation window, and there are LED lights in the grinding chamber, which can clearly understand the grinding status at any time.
7.Control panel with load display function
8. 7 grinding kits available in different materials
9.The grinding chamber is sealed and dustproof to reduce the environmental impact
10.The instrument is equipped with a sensing device for safe operation. Technical Parameters
Sample type: soft, hard, brittle and paste sample
Feed size: less than 15mm
Discharge size: 5um-20um (depending on the nature of the sample and the grinding environment)
Sample throughput: 10-200ml
Grinding time setting: 1s-99min59s continuously adjustable
Speed setting: 50rpm-150rpm
Application grinding range: dry grinding, wet grinding, low temperature grinding under liquid nitrogen
Mortar and pestle material: hard steel, stainless steel, tungsten carbide, agate, corundum, zirconia, hard porcelain
Mortar pestle Pressure adjustment: through the scale
Scraper pressure adjustment: through the knob
Instrument size: Mortar grinder grinder AM200
Width × height × depth: 435 × 485 × 400mm
Net weight: about 25kg
Power: 180
