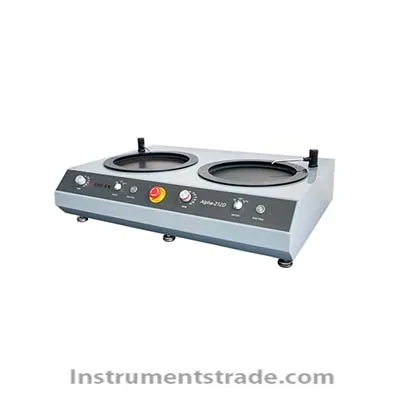

Alpha-212D Manual Grinding and Polishing Machine Introduction: Alpha-212D is a 10 "/12" (254/305mm) disc diameter, dual disc, dual control grinding and polishing machine. The machine is easy to operate and has stable performance, especially suitable for grinding and polishing large-sized samples. characteristic: (1) Using servo motors, even at speeds as low as 50RPM, it can maintain high torque output; (2) 304 stainless steel body, aluminum base, large diameter water outlet pipe to avoid rust and water blockage troubles; (3) The panel is simple, easy to operate, and user-friendly; (4) Equipped with a work disk locking function, it can meet the needs of fine "hand rubbing" grinding and polishing; (5) Plug in faucet, convenient for cleaning and maintenance; (6) Dual fan, automatic temperature sensing cooling system, protects motor overload and extends motor life. Technical parameters: 1. Model: Alpha-212D 2. Number of working disks: dual disks Maximum disc diameter: 12 "(305mm) Speed: 0-600rpm infinite speed regulation Steering: clockwise/counterclockwise Torque: 10N. m 3. Electrical voltage/frequency: 220V/50Hz (1Ph/N/PE) Rated power: 1500W Rated current: 8W 4. Maximum water pressure for water supply:<0.3MPa Inlet pipe diameter: OD=Φ 8mm Outlet pipe diameter: OD=Φ 32mm Circulating water tank: optional 5. Noise:<40dBA (measured at a distance of 1 meter) 6. Operating ambient temperature: -20 ° C -60 ° C (-4 ° F -140 ° F) Humidity: 0-95% RH 7. Dimensions W × D × H: 860 × 662 × 279mm 8. Weight: 56kg
Introduction: Alpha-212D is a 10 "/12" (254/305mm) disc diameter, dual disc, dual control grinding and polishing machine. The machine is easy to operate and has stable performance, especially suitable for grinding and polishing large-sized samples.
