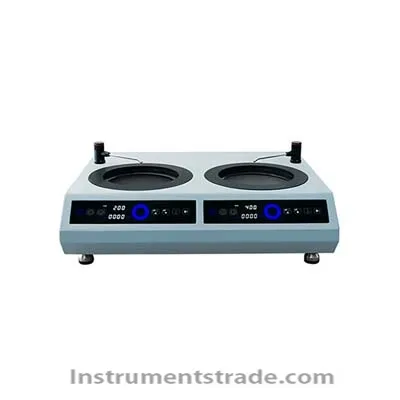

Alpha-208 dual disc dual control grinding and polishing machine Introduction: Alpha-208 is an 8 "(203mm) disc diameter, dual disc, dual control grinding and polishing machine. The machine is compact, structurally compact, and easy to operate. It uses popular touch panels and gesture sensing switches, making it particularly suitable for grinding and polishing various samples. characteristic: (1) Using servo motors, it can maintain high torque even at low speeds; (2) Adopting a glass touch panel, the operation is simple and easy to pick up; (3) The work disk adopts a fully sealed design, so even if there is water accumulation inside the disk, it will not leak into the equipment; (4) Plug in faucet, convenient for cleaning and washing; (5) The disassembly of the work disk does not require tools and is extremely convenient; (6) ABS molded shell, compact and beautiful in appearance, with high strength. Technical parameters: 1. Model: Alpha-208 2. Working disk diameter: 8 "(203mm) Speed: 0-600rpm Steering: clockwise/counterclockwise Torque: 10N. m 3. Electrical voltage/frequency: 220V/50Hz (1Ph/N/PE) Rated power: 1500W Rated current: 8A 4. Control panel: tempered glass, touch sensitive Three preset speeds: available Timer/Countdown: Yes 5. Maximum water pressure for water supply:<0.3MPa Inlet connector: G 3/4 external thread Outlet pipe diameter: OD=Φ 32mm (1-1/4 inch) Circulating water tank: optional 6. Noise:<40dBA (measured at a distance of 1 meter) 7. Operating environment temperature: -20 ° C -60 ° C (-4 ° F -140 ° F) Humidity: 0-95% RH 8. Dimensions W × D × H: 672 × 575 × 280mm 9. Weight: 34Kg
Introduction: Alpha-208 is an 8 "(203mm) disc diameter, dual disc, dual control grinding and polishing machine. The machine is compact, structurally compact, and easy to operate. It uses popular touch panels and gesture sensing switches, making it particularly suitable for grinding and polishing various samples.
