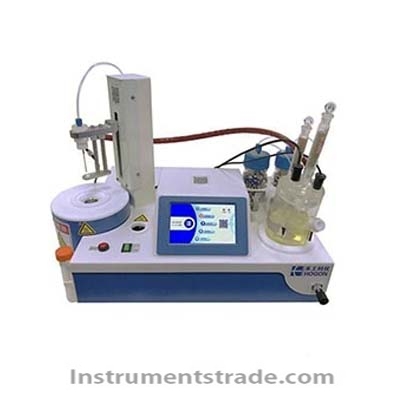

Introduction: The AKF-CH6 Lithium Battery Moisture Analyzer is a Karl Fischer moisture measurement device that integrates a moisture measurement module and a heating sample injection module. The instrument is completely built according to the needs of users in the lithium battery industry. It has a novel appearance design, easy use and maintenance, and can cover the lithium battery industry. From positive and negative materials, pole pieces, separators to electrolytes, the water content ranges from 1ppm to 100% of the usage requirements. Features: 1. Integrated design of cassette furnace moisture meter, reasonable layout and less space occupied 2. Color touch screen, full numeric keyboard, one-key start, simple operation, no need for professionals to work easily; 3. HOGON intelligent detection technology: automatic balance, automatic detection, and automatic adjustment of detection accuracy to adapt to environmental drift; 4. Brand-new electrolysis control function, adapt to various electrolytes, extremely high detection limit, and moisture determination accuracy of 0.01ug; 5. With electronic display of carrier gas flow, display of moisture content curve and other functions, the interface is intuitive and clear; 6. The sample evaporator has a variety of high-precision temperature control modes such as constant temperature and Cheng Sheng, and has an intelligent over-temperature protection function; 7. Equipped with adjustable temperature carrier gas insulation accompanying pipe to prevent sample moisture from condensing in the carrier gas pipeline; 8. The puncture and screw cap dual sampling method can be flexibly selected according to different use environments; 9. A variety of different analysis method parameters can be edited, stored, and recalled, which is convenient to adapt to different sample detection; 11. A variety of measurement methods are built in, and it is suitable for multiple detection needs of gas, liquid, fixed sample, and high and low water content; 12. Intelligent status monitoring, hardware intelligent protection, abnormal termination, timing stop and other functions can effectively extend the service life of the product. Technical parameter: Measurement method: Karl Fischer coulometric method (coulometric method) Measuring range: Water: 3ug-199mg/0.01ug (water quality) Repeatability: ≧99.7% (1000μg water) Applicable sample types: liquid samples, solid samples, gas samples Sampling mode: direct injection, puncture injection, cap replacement and purging injection Temperature control range: room temperature~285℃ /0.1℃; 3 steps rise Heating rate: 15°C/min (below 200°C) Measurement time: 50 seconds to ten minutes on average (different methods) Input air source: external dry air/nitrogen (99.99%) Carrier gas pressure: input limit is 0.6Mpa, output: 0~0.4Mpa Flow range: 0~100mL/min Flow accuracy: 1ml/min Sample bottle specifications: 10ml and 20mL Data output: RS232/USB, USB pin type micro printer Instrument power: 300W; 220V/50Hz Size and weight: length * width * height: 500*250*360 (mm) weight: 11.5 (kg)
Introduction: The AKF-CH6 Lithium Battery Moisture Analyzer is a Karl Fischer moisture measurement device that integrates a moisture measurement module and a heating sample injection module. The instrument is completely built according to the needs of users in the lithium battery industry. It has a novel appearance design, easy use and maintenance, and can cover the lithium battery industry. From positive and negative materials, pole pieces, separators to electrolytes, the water content ranges from 1ppm to 100% of the usage requirements.
