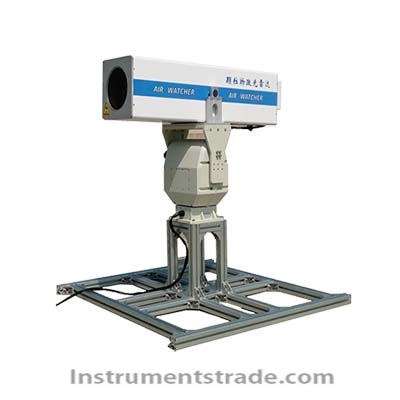

AIR-WATCHER T02 Atmospheric Aerosol Lidar Introduction: The AIR-WATCHER T02 atmospheric aerosol lidar can be used to study the direct radiation intensity of atmospheric aerosols, and can be used for remote sensing to measure the air state of road sections. It has an IP65 protection level and supports wireless data transmission, making it an important remote sensing device for atmospheric monitoring. characteristic: 1. Can be configured with spatial resolution, supporting: 4.5m/6m/7.5m/15m/30m, etc; 2. It has IP65 level protection capability to ensure that the instrument operates normally in harsh weather conditions; 3. Optional liquid cooling system ensures that the laser operates at a constant temperature to obtain more accurate data; 4. It can operate outdoors for a long time without the need for an air conditioning cabinet. Technical parameters: Laser type: Nd YAG laser, can be customized according to customer needs Working wavelength: 532nm ± 1nm, 1064nm, optional Pulse repetition frequency: 1Khz-150Khz， Software adjustable Single pulse energy: ≥1mJ Data acquisition system: photon counter 3D scanning control method: software control 3D scanning format: multi turn continuous rotation without winding Spatial resolution: 7.5m 15m 30m 60m User selectable
Introduction: The AIR-WATCHER T02 atmospheric aerosol lidar can be used to study the direct radiation intensity of atmospheric aerosols, and can be used for remote sensing to measure the air state of road sections. It has an IP65 protection level and supports wireless data transmission, making it an important remote sensing device for atmospheric monitoring.
