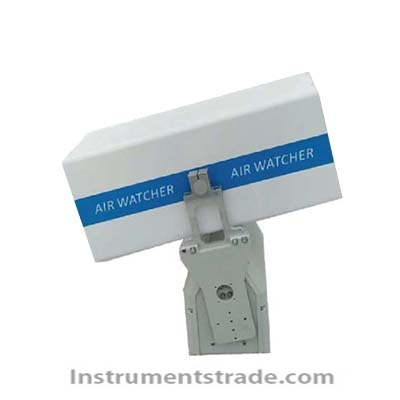

AIR-WATCHER-T01 3D Scanning Radar Introduction: The AIR-WATCHER T01 atmospheric aerosol lidar can be used to study the direct radiation intensity of atmospheric aerosols, and can be used for remote sensing to measure the air state of road sections. It has an IP65 protection level and supports wireless data transmission, making it an important remote sensing device for atmospheric monitoring. characteristic: 1. Particle monitoring, suitable for long-term observation of dust, fog, and haze; 2. Measurement of aerosol scattering coefficient, applied to the study of atmospheric radiation balance and climate change; 3. Smoke observation of biofuel combustion; 4. Research on fine particulate matter (PM2.5, PM10); 5. Monitoring of forest and shrub fires; 6. Long term monitoring of cloud height and thickness. Technical parameters: Laser type: Nd YAG laser, can be customized according to customer needs Working wavelength: 532nm ± 1nm, 1064nm, optional Pulse repetition frequency: 1Khz-150Khz， Software adjustable Single pulse energy: ≥10uJ Data acquisition system: photon counter 3D scanning control method: software control 3D scanning format: multi turn continuous rotation without winding Spatial resolution: 7.5m 15m 30m 60m User selectable
Introduction: The AIR-WATCHER T01 atmospheric aerosol lidar can be used to study the direct radiation intensity of atmospheric aerosols, and can be used for remote sensing to measure the air state of road sections. It has an IP65 protection level and supports wireless data transmission, making it an important remote sensing device for atmospheric monitoring.
