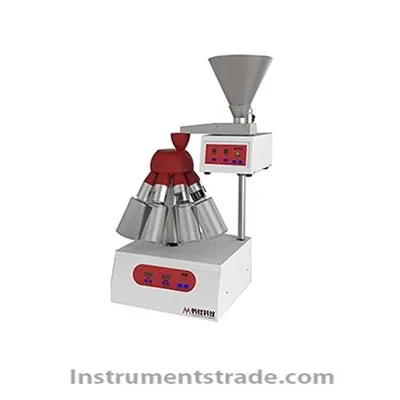

AF200 automatic rotary sampler Introduction
The design of the AF200 rotary sample structure of the automatic rotary sampler ensures the representativeness of the sample and the repeatability of the results. Mainly for the sampling of loose materials, the maximum injection size of 12mm. Whether it is fine particles or coarse particles, high standards of precision are guaranteed. The injection and sampling process is automated and does not cause any material loss. The sample throughput can be determined from a few milliliters to 5 liters depending on the volume of the selected sample vial. For different usage requirements, the required sample size can be obtained by repeating the sample and sample combination. Features
1. High sampling accuracy, representative and repeatable sample results
2. Integrated design of sample introduction system and sample system, easy to operate
3. Fully automated design, preset time, speed, injection speed
4. Sample sampling tank is optional, suitable for different sample sizes
5. The sample crown is made of aluminum and has wear resistance and is not easy to absorb samples.
6. For samples with finer particles, the top crown is protected by a dust cap.
7. Rapidly fastened structural design of the split crown, easy to disassemble
8. The overall design of the instrument is compact and easy to clean.
9. Various sizes of sample bottles are available to meet different needs
10. The instrument operates with low noise Technical Parameters
Technical parameters: Automatic rotary sampler AF200
Sample type: loose material
Feed size: up to 12mm
Single maximum sample size: 5L
Time setting: 1-99min, digital display, continuously adjustable
Sample system speed range: 70-120rpm
Autosampler flow: up to 5L/min
Number of copies: 6/8/10/30
Sample volume: 5ml, 10ml, 30ml, 100ml, 250ml, 500ml
Instrument size: Automatic rotary sampler AF200
Width × height × depth: 600mm × 920mm × 450mm
Net weight: about 35kg (including sampler)
Power: 150W
Technical parameters: Autosampler AF300
Sample type: loose material
Funnel volume: 2.8L and 3.5L
Conveyor groove width: 15mm, 40mm, 75mm
Transmission channel: 330mm
Conveyor shape: U-shaped feed trough and V-shaped feed trough optional
Autosampler flow: 0-5L/min
Time setting: 1-99min continuously adjustable
