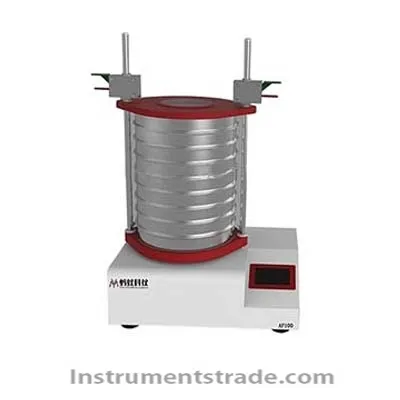

Introduction: AF100 main screening powder, loose material, suspended solids, is a three-dimensional vibration sieve instrument, that is, horizontal vibration and vibration up and down two kinds of sports, different from other domestic single screening vibration mode. The instrument can be both dry screening and wet screening, increasing the diversity of sample screening. Convenient screen quick fastening device, greatly improving the screening efficiency. 200mm, 300mm two diameter sieve design allows customers to freely select the sample screening, to achieve the function of two machines. Multi-functional operation panel, easy to operate, different amplitude, intermittent time adjustment, suitable for different samples of screening. How it works: AF100's three-dimensional throwing motion is generated by the electromagnetic drive-driven power, so that the sieve samples can be uniformly distributed in the screen surface. Screens can be placed at one time more than one sieve, the sample from the top sieve to start grading. Samples Three-dimensional oscillations in the sieve, samples smaller than the sieve aperture will drop in order, the final thinnest samples fall on the collection plate, each sieve has the corresponding size of the sample, to complete the sample grading. Applications: Chemicals, soils, plastics, fertilizers, detergents, metal powders, construction materials, minerals, seed grains and other powders, loose materials and suspended solids. Features: A three-dimensional throwing vibration effect 2 can be placed at the same time 200mm, 300mm diameter analysis sieve 3 measuring range: 20um-25mm 4 can dry sieve can wet sieve, suitable for different sample classification 5 can store 9 parameters, improve the efficiency and standardization of the instrument 6 Comfort Tightening device can be quickly locked, release the analytical sieve Technical Parameters: The company is located in: Sample types: powder, loose material, suspended solids Measuring range: 20um-25mm The largest sample processing capacity: 6kg The largest series: 9 The largest sieve tower quality: 10kg Amplitude range: 0.2-3mm Time display: digital display 1-99min Interval time: 5s-99s Storage parameters: 9 groups Screening method: dry screen, wet screen Sieve plate diameter: 200mm, 300mm Analysis of sieve diameter: 20um-25mm Analysis sieve material: stainless steel, nylon
