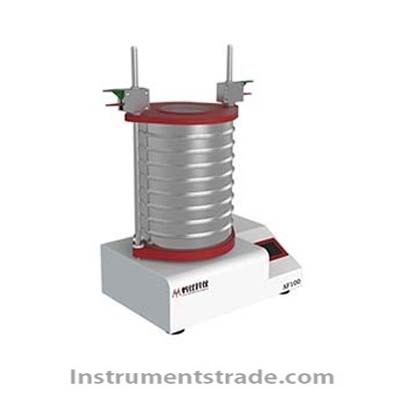

AF100 Oscillating Screener Introduction
Mainly sifting powder, loose material and suspended solids, it is a three-dimensional vibrating sifter, which is a horizontal vibration and up and down vibration, which is different from other single vibration modes of domestic screening. The instrument can be either dry or wet, increasing the diversity of sample screening. Convenient screen cover quick fastening device greatly improves the efficiency of screening. The 200mm and 300mm two-diameter sieves allow the customer to freely select the sieve component of the sample to achieve the two-in-one function. Multi-function operation panel, easy to operate, different amplitude, intermittent time adjustment, suitable for screening of different samples. Feature
1.Three-dimensional throwing vibration effect
2.Can be placed 100mm, 150mm, 200mm, 300mm diameter analysis sieve
3.Measurement range: 20um-25mm
4.Maximum sieving 6kg sample size
5.It can be used for both dry and wet screening, suitable for grading different samples.
6.Can be placed in 9-stage sieve tower
7.Wet screen device plug-in design
8.It can store 9 sets of parameters, and can set intermittent mode, which improves the efficiency and standardization of the instrument.
9.Comfortable fastening device can quickly lock and loosen the analysis sieve
10.Large size LCD touch screen for easy operation Technical Parameters
Sample type: powder, loose material, suspended solids
Measuring range: 20um-25mm
Maximum sample throughput: 6kg
Maximum number of levels: 9
Maximum sieve tower quality: 10kg
Amplitude range: 0.2-3mm
Time display: Digital display 1-99min
Intermittent time: 5s-99s
Storage parameters: 9 groups
Screening method: dry sieve, wet sieve
Screen plate diameter: 200mm, 300mm
Analyze sieve diameter: 20um-25mm
Analytical sieve material: stainless steel, nylon
Instrument size: 3D vibrating sifter AF100
Width × Height × Depth: 400 × 250 × 400mm
Net weight: about 35kg
Electronic parameters: 220V 50/60HZ 180W
Introduction
Mainly sifting powder, loose material and suspended solids, it is a three-dimensional vibrating sifter, which is a horizontal vibration and up and down vibration, which is different from other single vibration modes of domestic screening. The instrument can be either dry or wet, increasing the diversity of sample screening. Convenient screen cover quick fastening device greatly improves the efficiency of screening. The 200mm and 300mm two-diameter sieves allow the customer to freely select the sieve component of the sample to achieve the two-in-one function. Multi-function operation panel, easy to operate, different amplitude, intermittent time adjustment, suitable for screening of different samples.
