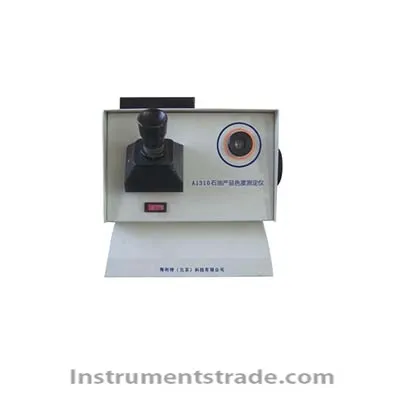

A1310 petroleum product colorimeter Introduction
The A1310 petroleum product colorimeter meets the SH / T0168-92 standard, and can correspond to the 16 color numbers of GB6540. It is suitable for measuring the color of lubricants and other petroleum products. During the measurement, a sample of the petroleum product to be measured is injected into the colorimetric tube, and then its color number can be determined by comparison with a standard color chip. Features
The instrument consists of a standard color wheel, observation optical lens, light source, and colorimetric tube
Use frosted milk shell light bulb as light source
After the light source is filtered, the color glass and the colorimeter tube of the standard color wheel can be evenly illuminated.
Optical eyepiece with light adjustment and focusing capabilities, easy to use Technical Parameters
Colorimeter tube inner diameter: Φ32mm
120 ～ 130mm high
Ambient temperature: 5 ℃ ～ 40 ℃
Relative humidity: ≤85%
Power supply voltage: AC 220V ± 10% 50Hz ± 10%
Power consumption: <500W
Standard color plate: 26 Φ14 light holes, 25 are equipped with standard color glass plates of 1-25 color numbers in sequence, 26 holes are blank.
Chroma: 1 ～ 25
Dimensions: 400mm × 320mm × 295mm
Instrument weight: 21kg
Introduction
The A1310 petroleum product colorimeter meets the SH / T0168-92 standard, and can correspond to the 16 color numbers of GB6540. It is suitable for measuring the color of lubricants and other petroleum products. During the measurement, a sample of the petroleum product to be measured is injected into the colorimetric tube, and then its color number can be determined by comparison with a standard color chip.
