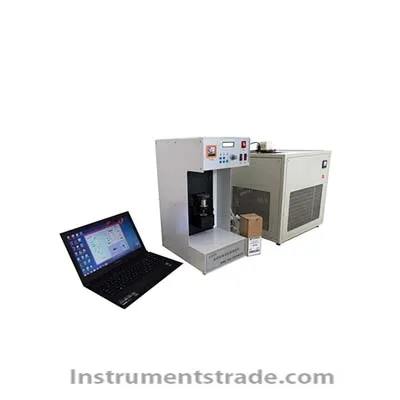

A1270 apparent viscosity tester for engine oil

Product ID:HZSYydnd032

Price: Please inquire PDF Format
Supply Ability:90 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberA1270
    Brand NameBEIJINGDELITE
    Payment TermsT/T, paypal
    A1270 apparent viscosity tester for engine oil
    Introduction
    A1270 automatic engine oil apparent viscosity tester is applicable to standards GB / T6538-2010, ASTM D5293; suitable for testing low temperature dynamic viscosity index of engine oil. A1270 can measure the apparent viscosity of oil products at the temperature of -35 ℃ to -5 ℃ with an interval of 5 ℃. It has the advantages of accurate measurement, good repeatability, stable performance and simple operation. It is suitable for measuring the apparent viscosity of engine oil under the shear stress of about 1000 ~ 27000 mPa.s; and the shear rate of 105 ~ 104 S-1, -5 ~ -35 ℃, A1270 adopts automatic temperature control Equipment, exquisite man-machine interaction interface, so that users can quickly and easily use the instrument for analysis. At the same time, the intelligent control system is used to improve the stability and reliability of the instrument.
    Features
    Industrial touch screen computer, WINDOWS operating system.
    Operating interface language: optional setting (Chinese).
    Omron temperature controller, easy to operate with the touch of a button.
    Automatically detect the speed and fine-tune the knob to control the current, reducing manual operation errors.
    Imported compressor cascade refrigeration, large cooling capacity.
    Driven by imported motor with high precision.
    Can save and print experiment results.
    Results are automatically calculated after calibration with standard oil.
    Embedded operating system, stable and reliable work.
    Improved rotor, low torque test state, high repeatability.
    After the test, it will stop automatically and heat up to facilitate rapid cleaning.
    The instrument automatically recommends the cooling temperature.
    The rotary encoder detects the speed.
    The parameter values ​​of all standard oils can be edited and stored.
    Store 1000 sets of historical data for easy inquiry; failure self-test.
    Technical Parameters
    Temperature range: temperature range of external circulation alcohol bath
    Cold bath temperature control accuracy: ± 0.1 ℃
    Stator temperature control accuracy: ± 0.02 ℃
    Viscosity measurement range: 1000 ~ 27000 mPa.s;
    Operating environment: 10 ℃ ~ 40 ℃
    Ambient humidity: <85%
    Power: <2.5KW
    Working power: AC220V ± 10%, 50Hz

  • Introduction
    A1270 automatic engine oil apparent viscosity tester is applicable to standards GB / T6538-2010, ASTM D5293; suitable for testing low temperature dynamic viscosity index of engine oil. A1270 can measure the apparent viscosity of oil products at the temperature of -35 ℃ to -5 ℃ with an interval of 5 ℃. It has the advantages of accurate measurement, good repeatability, stable performance and simple operation. It is suitable for measuring the apparent viscosity of engine oil under the shear stress of about 1000 ~ 27000 mPa.s; and the shear rate of 105 ~ 104 S-1, -5 ~ -35 ℃, A1270 adopts automatic temperature control Equipment, exquisite man-machine interaction interface, so that users can quickly and easily use the instrument for analysis. At the same time, the intelligent control system is used to improve the stability and reliability of the instrument.
