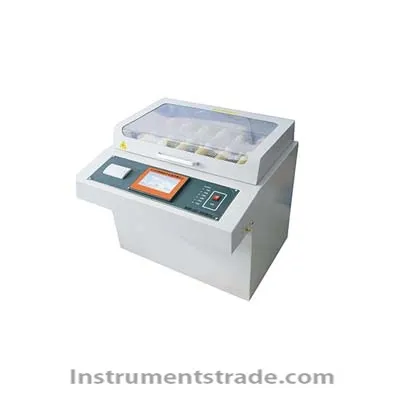

A1162 Dielectric Strength Tester for Insulating Oil Introduction
A1162 insulation oil dielectric strength tester adapts to the standard GB / T507-2002, the line standard DL429.9-91 and the power industry standard DL / T846.7-2004. This instrument uses a single-chip microcomputer as the core to achieve full automation of testing. With high measurement accuracy, it greatly improves the work efficiency, and also greatly reduces the labor intensity of the staff. Features
Using microprocessor and six cups in one, it can automatically complete the operation of boosting, holding, stirring, standing, calculating, printing, etc. It can perform the oil cycle withstand voltage test in the range of 0-100kV.
Large screen LCD display, Chinese character menu prompts.
The operation is simple, the operator only needs to perform simple settings, and the instrument will automatically complete the pressure test of 1-6 oil samples according to the settings. For each oil sample, the breakdown voltage value and the number of cycles are automatically stored. After the test is completed, the thermal printer can print out the breakdown voltage value and average value of each oil sample.
Power-down hold, can store 100 experimental results, and can display the current ambient temperature and humidity.
It adopts single-chip microcomputer control for uniform speed boost, and the voltage frequency is accurate to 50HZ, making the whole process easy to control.
With over-voltage, over-current, limit and other protections to ensure the safety of operators.
With temperature measurement display function and system clock display.
Standard RS232 interface, can communicate with computer. Technical Parameters
Output voltage: 0 ～ 100kV (optional)
Voltage distortion rate: <3%
Boost speed: 0.5 ～ 5kV / S (adjustable)
Quiet time: 15 minutes (adjustable)
Boost interval: 5 minutes (adjustable)
Boost times: 1 to 6 times
Booster capacity: 1.5kVA
Measurement accuracy: ± 3%
Power supply voltage: AC220V ± 10% 50Hz ± 1 Hz
Power: 200W
Applicable temperature: 0 ℃ ～ 45 ℃
Applicable humidity: <75% RH
Dimensions: 760 × 670 × 780mm
A1162 insulation oil dielectric strength tester adapts to GB / T507-2002, line standard DL429.9-91 and power industry standard DL / T846.7-2004. A1162 insulation oil dielectric strength tester uses a single-chip microcomputer as its core. It realizes fully automatic testing, high measurement accuracy, greatly improving work efficiency, and also greatly reducing the labor intensity of staff.
