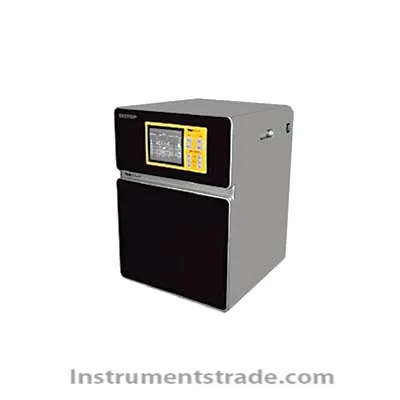

Product profile: Biotop gel imaging system can directly obtain a variety of nucleic acid, protein electrophoresis images. The system can collect, process, analyze and print the image directly through the panel or software. The basic operation. 805, with its stable performance and high cost performance, has been favored by the vast number of users both at home and abroad. The system has the function of ultraviolet automatic protection, the ultraviolet lamp source can be closed automatically when the sample is taken out, and it can enter into the state of cutting glue, and equipped with the special protective device of cutting glue to protect the personal safety of the operator to the greatest extent. The top of the system can be easily opened to change the filter to adapt to the user to replace different fluorescent dye. Standard 590nm filters can be used for EB and GelRed stains, if other dyes are used, please advise in advance so that appropriate hardware changes can be made. Core parameters: CCD size: 1 / 2 inch Acquisition digit: 10 bit CCD resolution: 1.33 million pixels Optical lens: 8-48mm 6 times zoom SNR: ≥ 56dB Detection sensitivity: ≥ 20pg Dynamic range: 0-4.8 OD Instrument type: ordinary gel imaging Power: 110 / 220V Size: 430*410*560 Weight: 22kg Authentication: CE
Product profile: Biotop gel imaging system can directly obtain a variety of nucleic acid, protein electrophoresis images. The system can collect, process, analyze and print the image directly through the panel or software. The basic operation. 805, with its stable performance and high cost performance, has been favored by the vast number of users both at home and abroad. The system has the function of ultraviolet automatic protection, the ultraviolet lamp source can be closed automatically when the sample is taken out, and it can enter into the state of cutting glue, and equipped with the special protective device of cutting glue to protect the personal safety of the operator to the greatest extent. The top of the system can be easily opened to change the filter to adapt to the user to replace different fluorescent dye. Standard 590nm filters can be used for EB and GelRed stains, if other dyes are used, please advise in advance so that appropriate hardware changes can be made.
