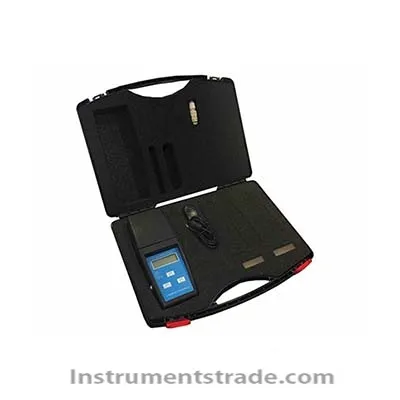

3S-JS10 water ozone concentration detector
Introduction
The 3S-JS10 water ozone concentration detector is suitable for ozone concentration detection of large, medium and small water plants and industrial and mining enterprises, domestic or industrial water, in order to control the water ozone to meet the specified water quality standards.
This instrument replaces the traditional visual colorimetry with the principle of microcomputer photoelectron colorimetric detection. The human error is eliminated, so the measurement resolution is greatly improved. When measuring, when the water sample is poured into the reagent, the water sample will turn red. The water sample is then placed in the photoelectric color holder and the instrument will obtain the concentration of ozone by comparing the shades of red.
Feature
1. Microcomputer, light touch keyboard, LCD LCD digital clear display, easy to use.
2. Automatic zero adjustment and 5-point automatic correction.
3. High-performance lithium battery, can be used continuously for 4 hours after charging for 4 hours.
4. Using high-precision circuit system, low drift, the instrument can work stably for a long time, and the water sample can be read by putting the reagent into it.
5. This instrument adopts special high-strength and long-life light source. The single light source is stable. The life of the light source is up to 20 years. It can be used directly without preheating when starting up.
6. The resolution of the instrument is up to 0.01mg/L.
Technical parameter
Measuring range: 0-3.0mg/L, 0-12.0mg/L
Minimum value: 0.001 mg/L
Repeatability: ≤2%
Accuracy: ≤±5%FS
Power supply voltage: DC 9V 50Hz
