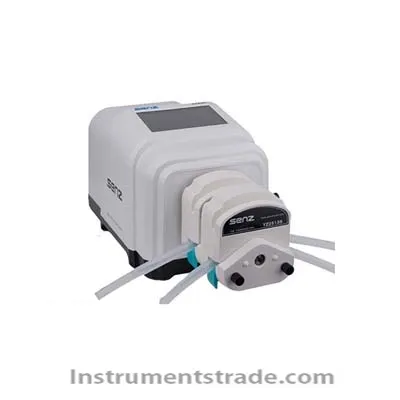

360D distribution type peristaltic pump Introduction:
360D distributed peristaltic pump 5-inch high-definition touch LCD screen, beautiful interface, easy to operate, real-time display of operating parameters and status. A variety of flow transmission and distribution modes for precise metering and dosing. Features:
1. Working mode: multiple transmission and distribution modes
2. Calibration function: multiple liquid volume or flow calibration methods
3. Pause function: can be suspended during distribution and transmission
4. Online adjustment: fine-tuning the distribution amount and flow during the running process
5. Density parameter: The dispensed liquid volume or flow rate can be set by weight unit.
6. Prompt function: display the settable liquid volume or flow range according to the setting parameters
7. Leakage detection: indicator light and audible alarm after leakage (optional)
8. External control: external control signal (5-24v), to achieve start and stop control
9.RS485/USB: address can be set and the screen is displayed, the baud rate is 1200-9600 bps
10. Status output: start and stop, direction, alarm Technical Parameters:
Speed range: 0.1-600rpm
Speed resolution: 0.1 rpm (<100 rpm) 1 rpm (≥ 100 rpm)
Quantitative interval: 0.1uL-99999.999L
Timing range: 0.1s-99999.999hr
Distribution time: 0-6553.5s
Number of allocations: 0-9999; 0 represents an infinite loop
Feedback parameters: angle: 0-999 °; delay: 0-100s
Applicable power supply: AC 100~240V 50~60Hz
Working environment: Temperature: 0-40 °C Humidity: 20%-85% RH No condensation
Protection level: IP31
Dimensions: 281x190x184 mm
The 360D distribution type peristaltic pump has a 5-inch high-definition touch LCD screen with beautiful interface, convenient operation and real-time display of operating parameters and status. A variety of flow transmission and distribution modes for precise metering and dosing.
