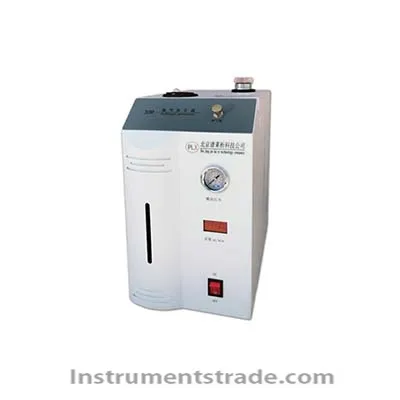

Introduction: The 320/520 new series of high-purity hydrogen generator is composed of electrolytic separation cell, switching power supply, pressure control, drying purification, flow display and other systems. The "heart" electrolytic separation cell of the instrument is a barrel structure. Liquid storage, hydrogen production, and oxygen exhaust can be performed at the same time. It has the advantages of large electrolysis area, low cell temperature, good performance, and higher purity. It is the best replacement for plate electrolytic cells. The instrument is equipped with gas condensation and non-liquid return devices, which can effectively ensure that the instrument has no liquid return phenomenon. Features: 1. Equipped with a lack of liquid alarm device 2. With the fan cooling function when the electrolytic cell is overheated 3. Front exhaust valve, easy to replace the silicone 4. The output end is equipped with a gas condensing device, which can make the gas purity higher. Technical Parameters: Technical Parameters: Power supply voltage: 220v 50Hz Maximum power: 150W; 180W Ambient temperature: 0-40℃, relative humidity <85%. Environmental conditions: no large amount of dust and corrosive gas. Gas purity: ≥99.999% Output flow: 0-300 ml/min 0-500ml/min Output pressure: 0.4Mpa (when special pressure is required, notify the factory before leaving the factory to determine otherwise) Dimensions; 370×220×360mm (L×W×H) Weight: about 13Kg
Introduction: The 320/520 new series of high-purity hydrogen generator is composed of electrolytic separation cell, switching power supply, pressure control, drying purification, flow display and other systems. The "heart" electrolytic separation cell of the instrument is a barrel structure. Liquid storage, hydrogen production, and oxygen exhaust can be performed at the same time. It has the advantages of large electrolysis area, low cell temperature, good performance, and higher purity. It is the best replacement for plate electrolytic cells. The instrument is equipped with gas condensation and non-liquid return devices, which can effectively ensure that the instrument has no liquid return phenomenon.
